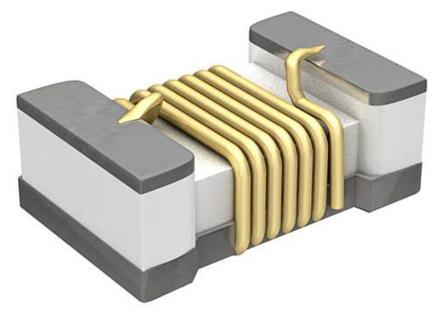

Murata LQW15A Series Type 0402 Wire-wound SMD Inductor with a Ferrite Core, 120 nH ±5% Wire-Wound 110mA Idc Q:20

LQW15ANR12J00D Murata LQW15A Series Type 0402 Wire-wound SMD Inductor with a Ferrite Core, 120 nH ±5% Wire-Wound 110mA Idc Q:20
Murata

Product Information

Priced to Clear:
Yes
Maximum DC Resistance:
2.66Ω
Inductor Construction:
Wire-Wound
Dimensions:
1 x 0.6 x 0.5mm
Shielded:
No
Series:
LQW15AN_00
Minimum Quality Factor:
20
Length:
1mm
Height:
0.5mm
Maximum DC Current:
110mA
Depth:
0.6mm
Core Material:
Ferrite
Inductance:
120 nH
Maximum Self Resonant Frequency:
1GHz
Maximum Operating Temperature:
+125°C
Tolerance:
±5%
Minimum Operating Temperature:
-55°C
Package/Case:
0402 (1005M)
RoHs Compliant
Checking for live stock

This is LQW15A Series Type 0402 Wire-wound SMD Inductor with a Ferrite Core 120 nH ±5% Wire-Wound 110mA Idc Q:20 manufactured by Murata. The manufacturer part number is LQW15ANR12J00D. Priced to Clear Options - yes. It allows up to 2.66ω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 1 x 0.6 x 0.5mm. Shielding Options no. The product lqw15an_00, is a highly preferred choice for users. It has minimum 20 quality factors. Its accurate length is 1mm. In addition, the height is 0.5mm. While it carries 110ma of maximum DC current. The product comes in 0.6mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 120 nh inductance value. It provides 1ghz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±5% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 0402 (1005m).

pdf icon
Chip Coils - LQW15A_00 Series (0402 size)(Technical Reference)
