Name: ACT45R-101-2P-TL001, TDK
Brand: TDK
SKU: ET14055613
Price: 0.42 GBP
Availability: InStock

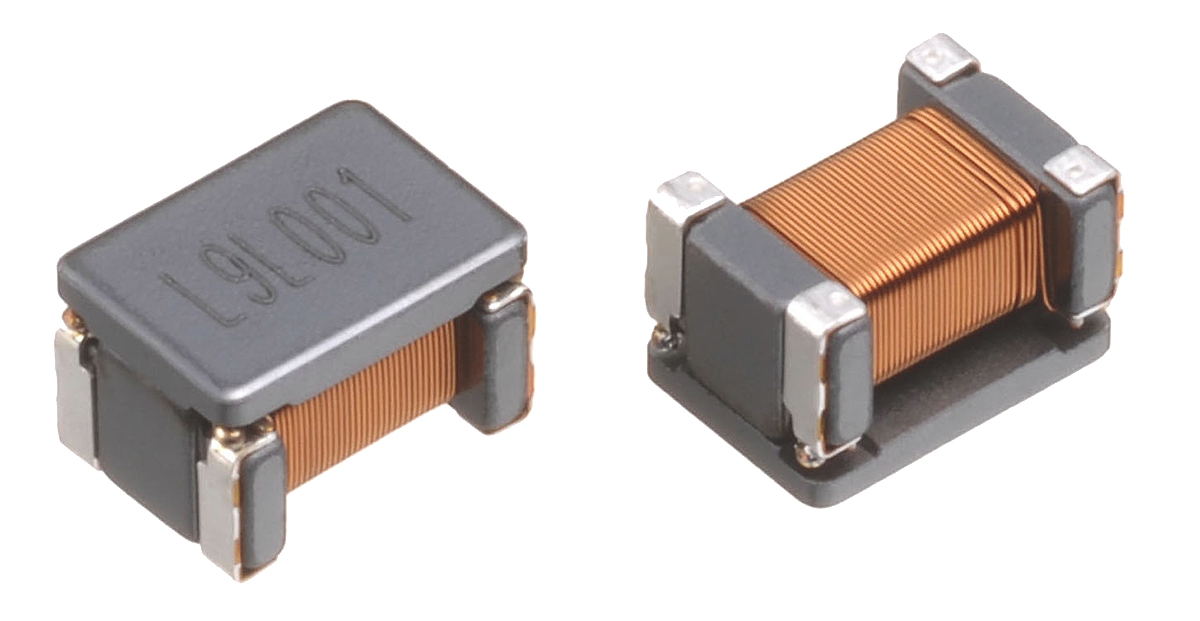

ACT45R-101-2P-TL001 TDK ACT Series Type 1812 Shielded SMD Common Mode Line Filter 100 μH -30 → +50% Wire-Wound 200mA Idc

(0)

Product Information

Maximum DC Resistance:

1500mΩ

Inductor Construction:

Wire-Wound

Dimensions:

4.5 x 3.2 x 2.8mm

Shielded:

Yes

Series:

ACT

Length:

4.5mm

Height:

2.8mm

Maximum DC Current:

200mA

Depth:

3.2mm

Inductance:

100 μH

Maximum Operating Temperature:

+105°C

Tolerance:

-30 → +50%

Checking for live stock

This is ACT Series Type 1812 Shielded SMD Common Mode Line Filter 100 μH -30 → +50% Wire-Wound 200mA Idc manufactured by TDK. The manufacturer part number is ACT45R-101-2P-TL001. It allows up to 1500mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 4.5 x 3.2 x 2.8mm. Shielding Options yes. The product act, is a highly preferred choice for users. Its accurate length is 4.5mm. In addition, the height is 2.8mm. While it carries 200ma of maximum DC current. The product comes in 3.2mm depth. The product has a 100 μh inductance value. It has a maximum operating temperature of +105°c. It features -30 → +50% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 1812 (4532m).

Datasheet(Technical Reference)

ACT45R Datasheet_EN(Technical Reference)
