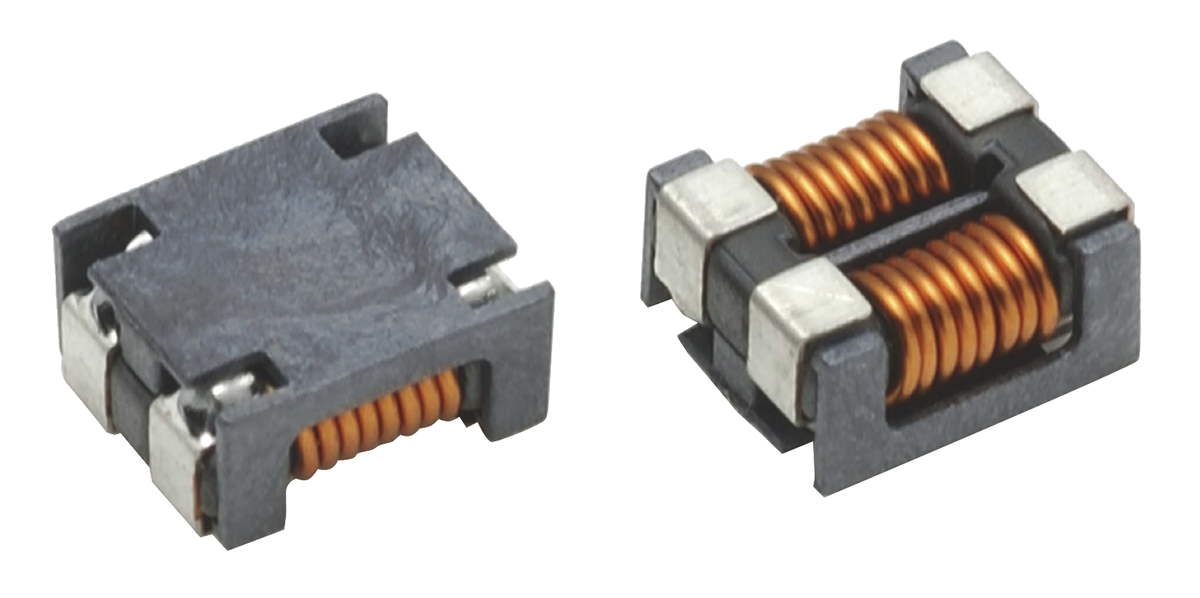

TDK ACM-V Series Type 70V Shielded SMD Common Mode Line Filter with a Ferrite Core, Wire-Wound 4A Idc

ACM70V-701-2PL-TL00 TDK ACM-V Series Type 70V Shielded SMD Common Mode Line Filter with a Ferrite Core, Wire-Wound 4A Idc
TDK

Product Information

Maximum DC Resistance:
15mΩ
Inductor Construction:
Wire-Wound
Dimensions:
7 x 6 x 3.5mm
Shielded:
Yes
Series:
ACM-V
Length:
7mm
Height:
3.5mm
Maximum DC Current:
4A
Depth:
6mm
Core Material:
Ferrite
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+125°C
Automotive Standard:
AEC-Q200
Package/Case:
70V
RoHs Compliant
Checking for live stock

This is ACM-V Series Type 70V Shielded SMD Common Mode Line Filter with a Ferrite Core Wire-Wound 4A Idc manufactured by TDK. The manufacturer part number is ACM70V-701-2PL-TL00. It allows up to 15mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 7 x 6 x 3.5mm. Shielding Options yes. The product acm-v, is a highly preferred choice for users. Its accurate length is 7mm. In addition, the height is 3.5mm. While it carries 4a of maximum DC current. The product comes in 6mm depth. The core is manufactured from highly durable and reliable ferrite materials. Whereas, the minimum operating temperature of the product is -40°c. It has a maximum operating temperature of +125°c. The product complies with automotive standard - aec-q200. Concerning its package and casing, it is 70v.
