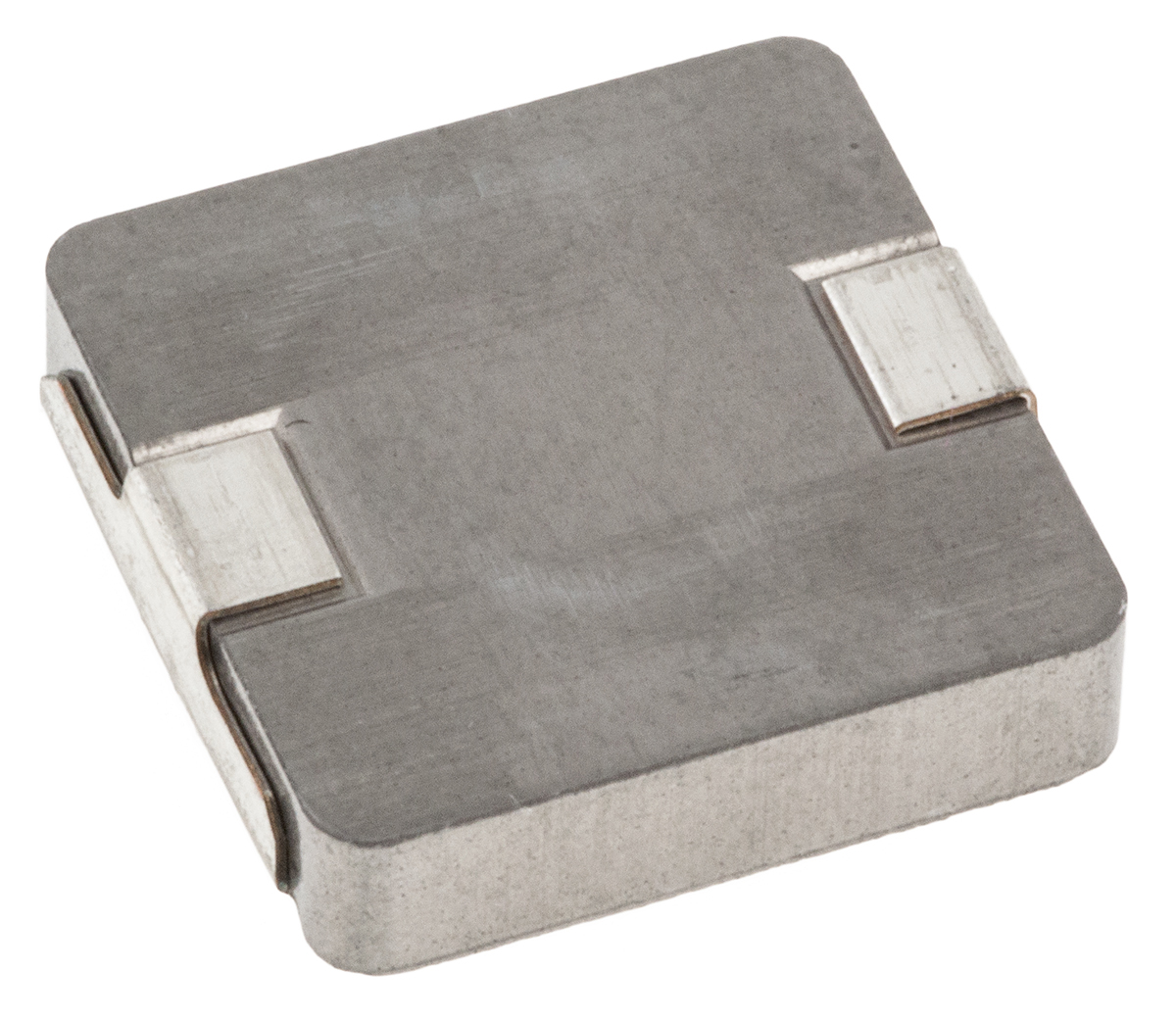

Vishay IHLP Series Type 5050 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 4.7 μH ±20% Wire-Wound

Enrgtech Part No: ET14030886
|
Manufacturer Part No:
IHLP5050CEER4R7M01
|
Manufacturer: Vishay

IHLP5050CEER4R7M01 Vishay IHLP Series Type 5050 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 4.7 μH ±20% Wire-Wound

Product Information

Maximum DC Resistance:

15mΩ

Inductor Construction:

Shielded

Dimensions:

13.2 x 12.9 x 3.5mm

Shielded:

Yes

Series:

IHLP

Length:

13.2mm

Height:

3.5mm

Maximum DC Current:

10A

Depth:

12.9mm

Core Material:

Metal Composite

Inductance:

4.7 μH

Maximum Self Resonant Frequency:

5MHz

Checking for live stock

This is IHLP Series Type 5050 Shielded Wire-wound SMD Inductor with a Metal Composite Core 4.7 μH ±20% Wire-Wound manufactured by Vishay. The manufacturer part number is IHLP5050CEER4R7M01. It allows up to 15mω maximum DC resistance. The inductor is designed as shielded inductor. The given dimensions of the product include 13.2 x 12.9 x 3.5mm. Shielding Options yes. The product ihlp, is a highly preferred choice for users. Its accurate length is 13.2mm. In addition, the height is 3.5mm. While it carries 10a of maximum DC current. The product comes in 12.9mm depth. The core is manufactured from highly durable and reliable metal composite materials. The product has a 4.7 μh inductance value. It provides 5mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 5050.
