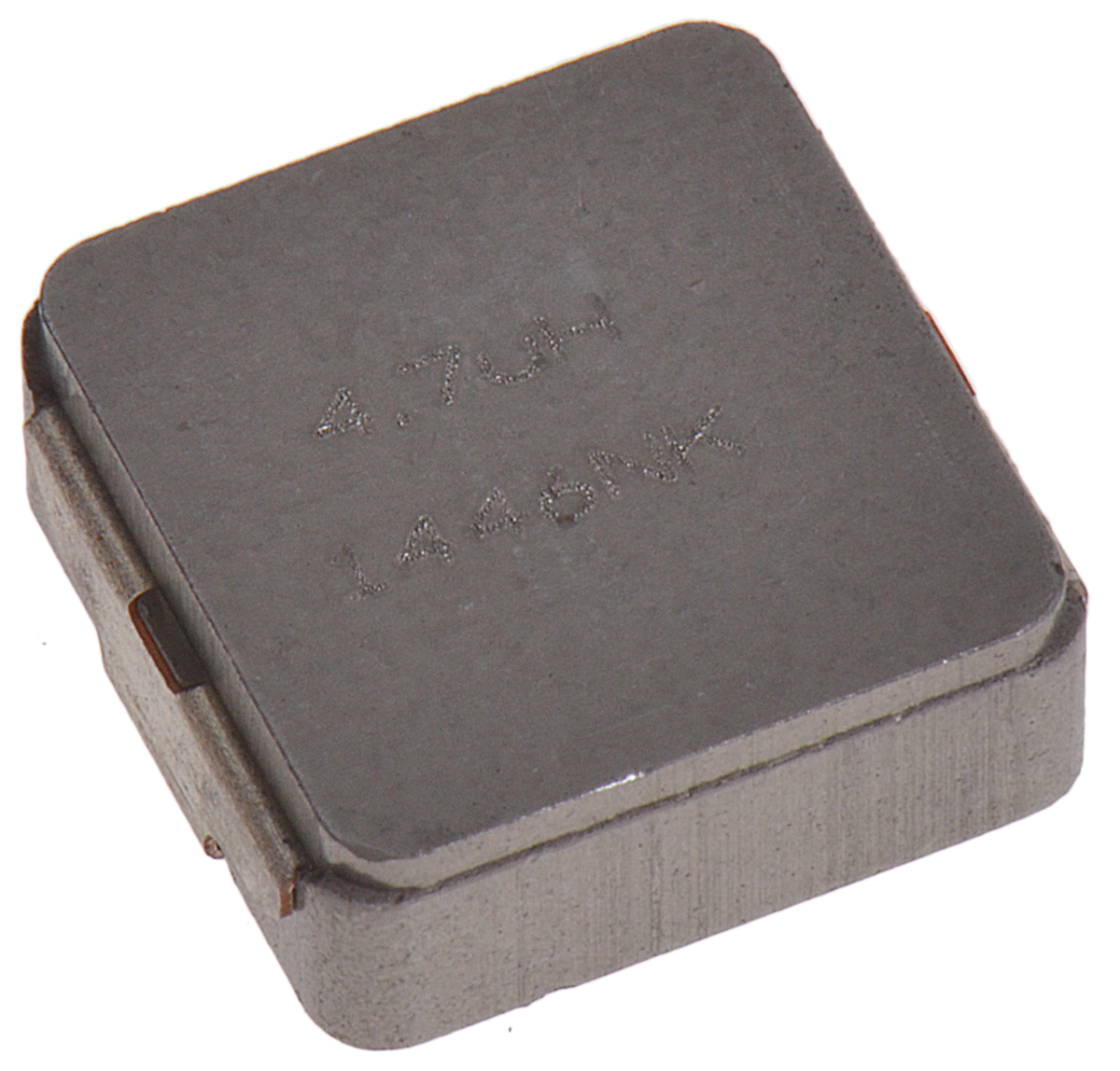

Vishay IHLP Series Type 4040 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 4.7 μH ±20% Wire-Wound

Enrgtech Part No: ET14030882
|
Manufacturer Part No:
IHLP4040DZER4R7M01
|
Manufacturer: Vishay

IHLP4040DZER4R7M01 Vishay IHLP Series Type 4040 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 4.7 μH ±20% Wire-Wound

Product Information

Maximum DC Resistance:

16.5mΩ

Inductor Construction:

Shielded

Dimensions:

10.8 x 10.16 x 4mm

Shielded:

Yes

Series:

IHLP-4040DZ-01

Minimum Operating Temperature:

-55°C

Length:

10.8mm

Height:

4mm

Maximum DC Current:

9.5A

Depth:

10.16mm

Core Material:

Metal Composite

Inductance:

4.7 μH

Checking for live stock

This is IHLP Series Type 4040 Shielded Wire-wound SMD Inductor with a Metal Composite Core 4.7 μH ±20% Wire-Wound manufactured by Vishay. The manufacturer part number is IHLP4040DZER4R7M01. It allows up to 16.5mω maximum DC resistance. The inductor is designed as shielded inductor. The given dimensions of the product include 10.8 x 10.16 x 4mm. Shielding Options yes. The product ihlp-4040dz-01, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. Its accurate length is 10.8mm. In addition, the height is 4mm. While it carries 9.5a of maximum DC current. The product comes in 10.16mm depth. The core is manufactured from highly durable and reliable metal composite materials. The product has a 4.7 μh inductance value. It provides 5mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. In addition, it is moulded yes . Concerning its package and casing, it is 4040.

Application Note(Technical Reference)

Power Inductors Capabilities(Technical Reference)

Power Inductors 101(Technical Reference)

IHLP40DZ01 Data Sheet(Technical Reference)

Did You Know?(Technical Reference)

IHLP Selection Example(Technical Reference)

Power Inductors Infograph(Technical Reference)
