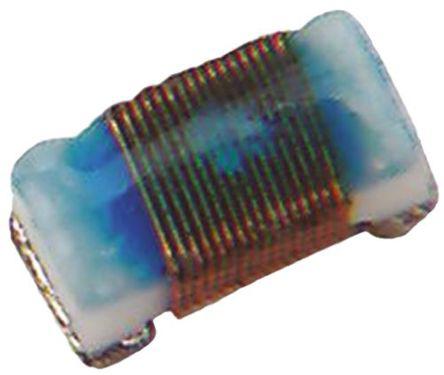

Murata LQW04A Series Type 03015 Wire-wound SMD Inductor with a Ferrite Core, 10 nH ±3% Wire-Wound 330mA Idc Q:20

LQW04AN10NH00D Murata LQW04A Series Type 03015 Wire-wound SMD Inductor with a Ferrite Core, 10 nH ±3% Wire-Wound 330mA Idc Q:20
Murata

Product Information

Maximum DC Resistance:
260mΩ
Inductor Construction:
Wire-Wound
Dimensions:
0.8 x 0.4 x 0.4mm
Shielded:
No
Series:
LQW04A
Minimum Quality Factor:
20
Length:
0.8mm
Height:
0.4mm
Maximum DC Current:
330mA
Depth:
0.4mm
Core Material:
Ferrite
Inductance:
10 nH
Maximum Self Resonant Frequency:
7GHz
Maximum Operating Temperature:
+125°C
Tolerance:
±3%
Minimum Operating Temperature:
-55°C
Package/Case:
03015
RoHs Compliant
Checking for live stock

This is LQW04A Series Type 03015 Wire-wound SMD Inductor with a Ferrite Core 10 nH ±3% Wire-Wound 330mA Idc Q:20 manufactured by Murata. The manufacturer part number is LQW04AN10NH00D. It allows up to 260mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 0.8 x 0.4 x 0.4mm. Shielding Options no. The product lqw04a, is a highly preferred choice for users. It has minimum 20 quality factors. Its accurate length is 0.8mm. In addition, the height is 0.4mm. While it carries 330ma of maximum DC current. The product comes in 0.4mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 10 nh inductance value. It provides 7ghz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±3% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 03015.

pdf icon
LQW04A Series (03015 Size) Chip Inductor (Chip Coil) for High Frequency Horizontal Wire Wound Data Sheet(Technical Reference)
