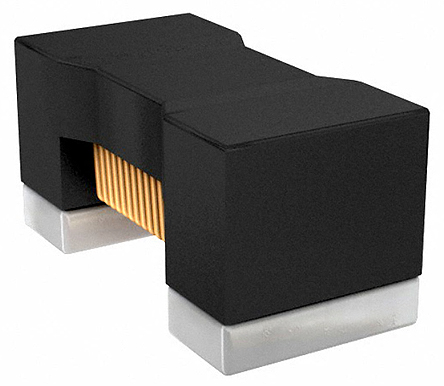

Murata LQW18A Series Type 0603 Wire-wound SMD Inductor with a Ferrite Core, 130 nH ±2% Wire-Wound 170mA Idc Q:32

LQW18ANR13G00D Murata LQW18A Series Type 0603 Wire-wound SMD Inductor with a Ferrite Core, 130 nH ±2% Wire-Wound 170mA Idc Q:32
Murata

Product Information

Maximum DC Resistance:
1.4Ω
Inductor Construction:
Wire-Wound
Dimensions:
1.6 x 0.8 x 0.8mm
Shielded:
No
Series:
LQW18A
Minimum Quality Factor:
32
Length:
1.6mm
Height:
0.8mm
Maximum DC Current:
170mA
Depth:
0.8mm
Core Material:
Ferrite
Inductance:
130 nH
Maximum Self Resonant Frequency:
1.45GHz
Maximum Operating Temperature:
+125°C
Tolerance:
±2%
Minimum Operating Temperature:
-55°C
Package/Case:
0603 (1608M)
RoHs Compliant
Checking for live stock

This is LQW18A Series Type 0603 Wire-wound SMD Inductor with a Ferrite Core 130 nH ±2% Wire-Wound 170mA Idc Q:32 manufactured by Murata. The manufacturer part number is LQW18ANR13G00D. It allows up to 1.4ω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 1.6 x 0.8 x 0.8mm. Shielding Options no. The product lqw18a, is a highly preferred choice for users. It has minimum 32 quality factors. Its accurate length is 1.6mm. In addition, the height is 0.8mm. While it carries 170ma of maximum DC current. The product comes in 0.8mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 130 nh inductance value. It provides 1.45ghz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±2% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 0603 (1608m).

pdf icon
LQW18AN_00 Series (0603 Size) Data Sheet(Technical Reference)
