Name: 744770122, Wurth Elektronik
Brand: Wurth Elektronik
SKU: ET13961957
Price: 1.72 GBP
Availability: InStock

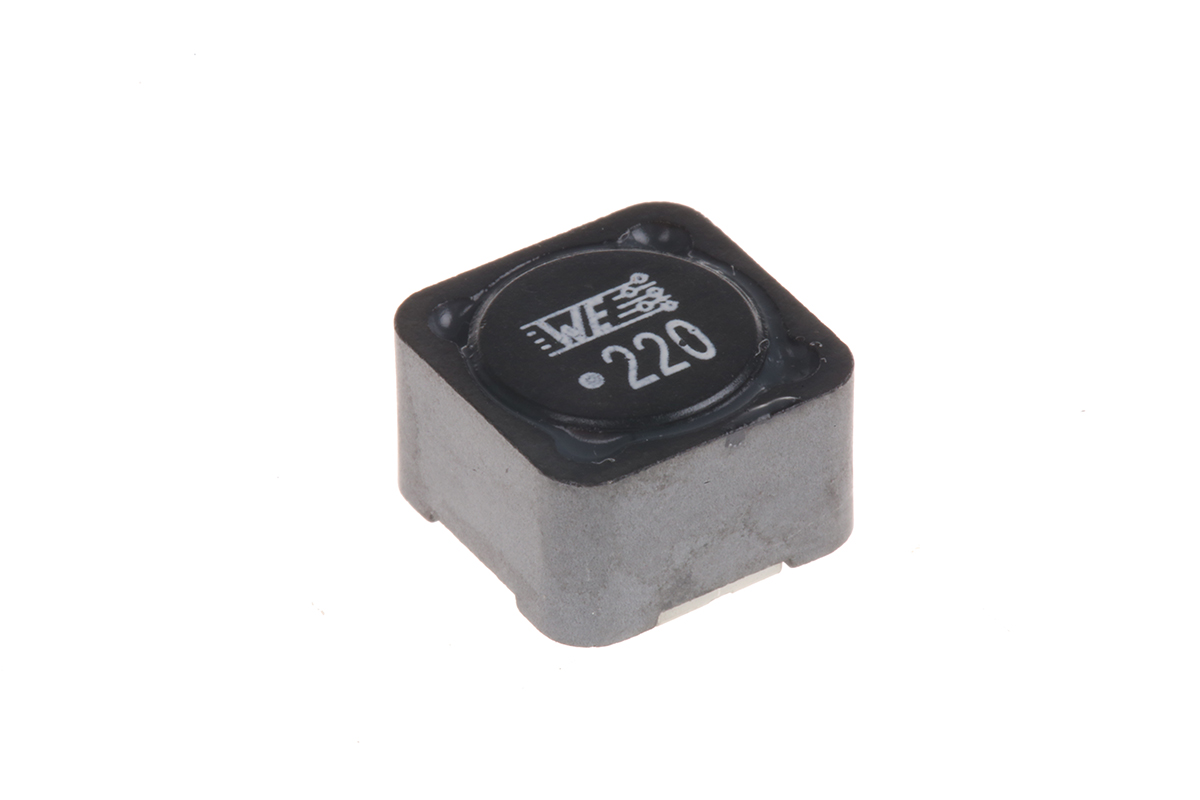

744770122 Wurth WE-PD Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±20% 4.1A Idc

(0)

Product Information

Maximum DC Resistance:

43mΩ

Inductor Construction:

Wire-Wound

Dimensions:

12 x 12 x 8mm

Shielded:

Yes

Series:

WE-PD

Length:

12mm

Height:

8mm

Maximum DC Current:

4.1A

Depth:

12mm

Core Material:

Ferrite

Inductance:

22 μH

Maximum Self Resonant Frequency:

12MHz

Checking for live stock

This is Wurth WE-PD Series Shielded Wire-wound SMD Inductor with a Ferrite Core 22 μH ±20% 4.1A Idc manufactured by Wurth Elektronik. The manufacturer part number is 744770122. It allows up to 43mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 12 x 12 x 8mm. Shielding Options yes. The product we-pd, is a highly preferred choice for users. Its accurate length is 12mm. In addition, the height is 8mm. While it carries 4.1a of maximum DC current. The product comes in 12mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 22 μh inductance value. It provides 12mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 1280.
