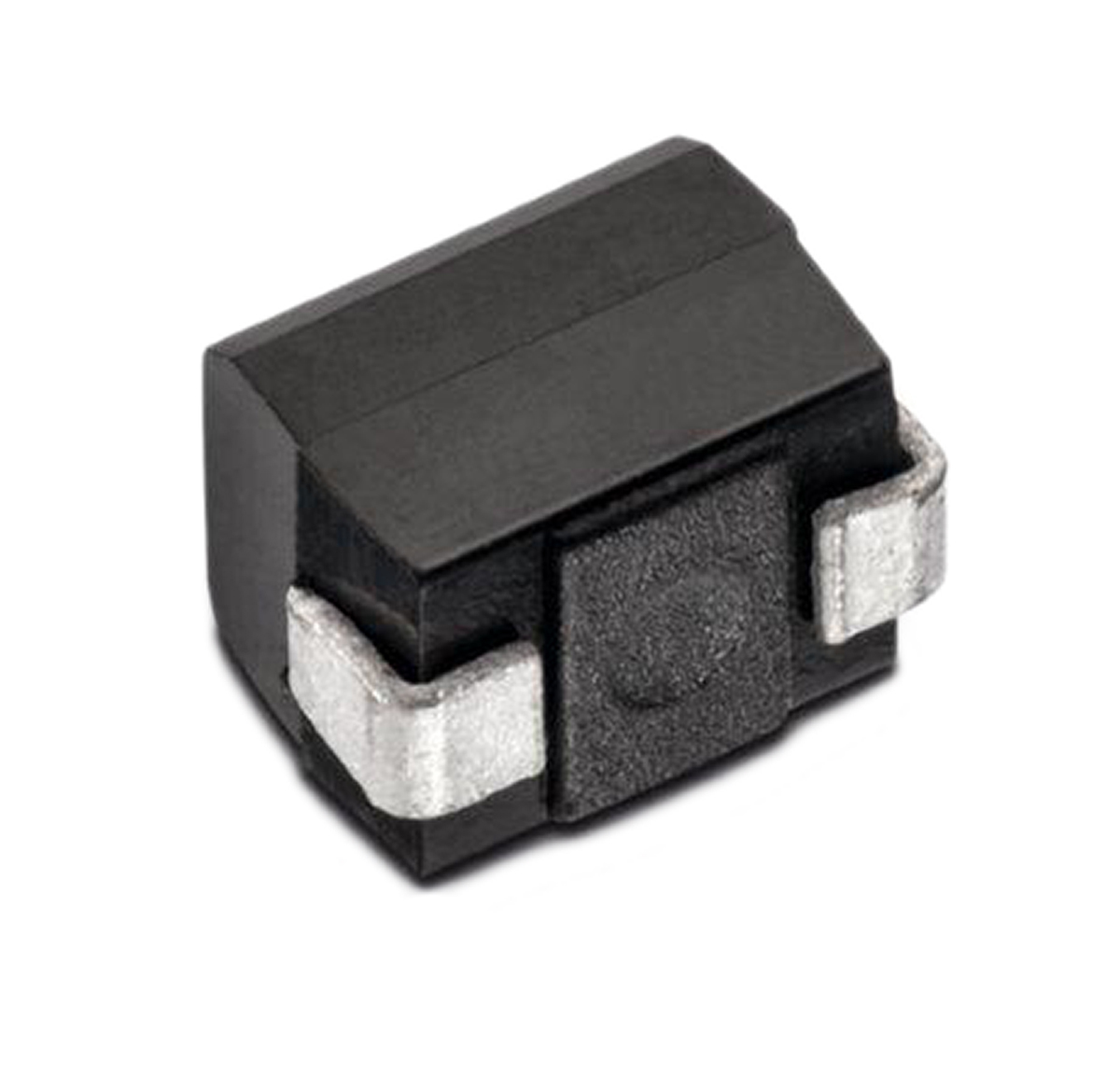

Wurth WE-GFH Series Type 4532 Wire-wound SMD Inductor with a Iron Core, 22 μH Moulded 650mA Idc Q:35

7447669122 Wurth WE-GFH Series Type 4532 Wire-wound SMD Inductor with a Iron Core, 22 μH Moulded 650mA Idc Q:35
7447669122
7447669122
Wurth Elektronik

Product Information

Maximum DC Resistance:
790mΩ
Inductor Construction:
Moulded
Dimensions:
4.2 x 3.2 x 3.2mm
Shielded:
No
Series:
WE-GFH
Minimum Operating Temperature:
-40°C
Minimum Quality Factor:
35
Length:
4.2mm
Height:
3.2mm
Maximum DC Current:
650mA
Depth:
3.2mm
Core Material:
Powdered Iron
Inductance:
22 μH
Maximum Self Resonant Frequency:
23MHz
Maximum Operating Temperature:
+125°C
Tolerance:
±10%
Moulded:
Yes
Package/Case:
4532
RoHs Compliant
Checking for live stock

This is Wurth WE-GFH Series Type 4532 Wire-wound SMD Inductor with a Iron Core 22 μH Moulded 650mA Idc Q:35 manufactured by Wurth Elektronik. The manufacturer part number is 7447669122. It allows up to 790mω maximum DC resistance. The inductor is designed as moulded inductor. The given dimensions of the product include 4.2 x 3.2 x 3.2mm. Shielding Options no. The product we-gfh, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. It has minimum 35 quality factors. Its accurate length is 4.2mm. In addition, the height is 3.2mm. While it carries 650ma of maximum DC current. The product comes in 3.2mm depth. The core is manufactured from highly durable and reliable powdered iron materials. The product has a 22 μh inductance value. It provides 23mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±10% of tolerance value. In addition, it is moulded yes . Concerning its package and casing, it is 4532.
