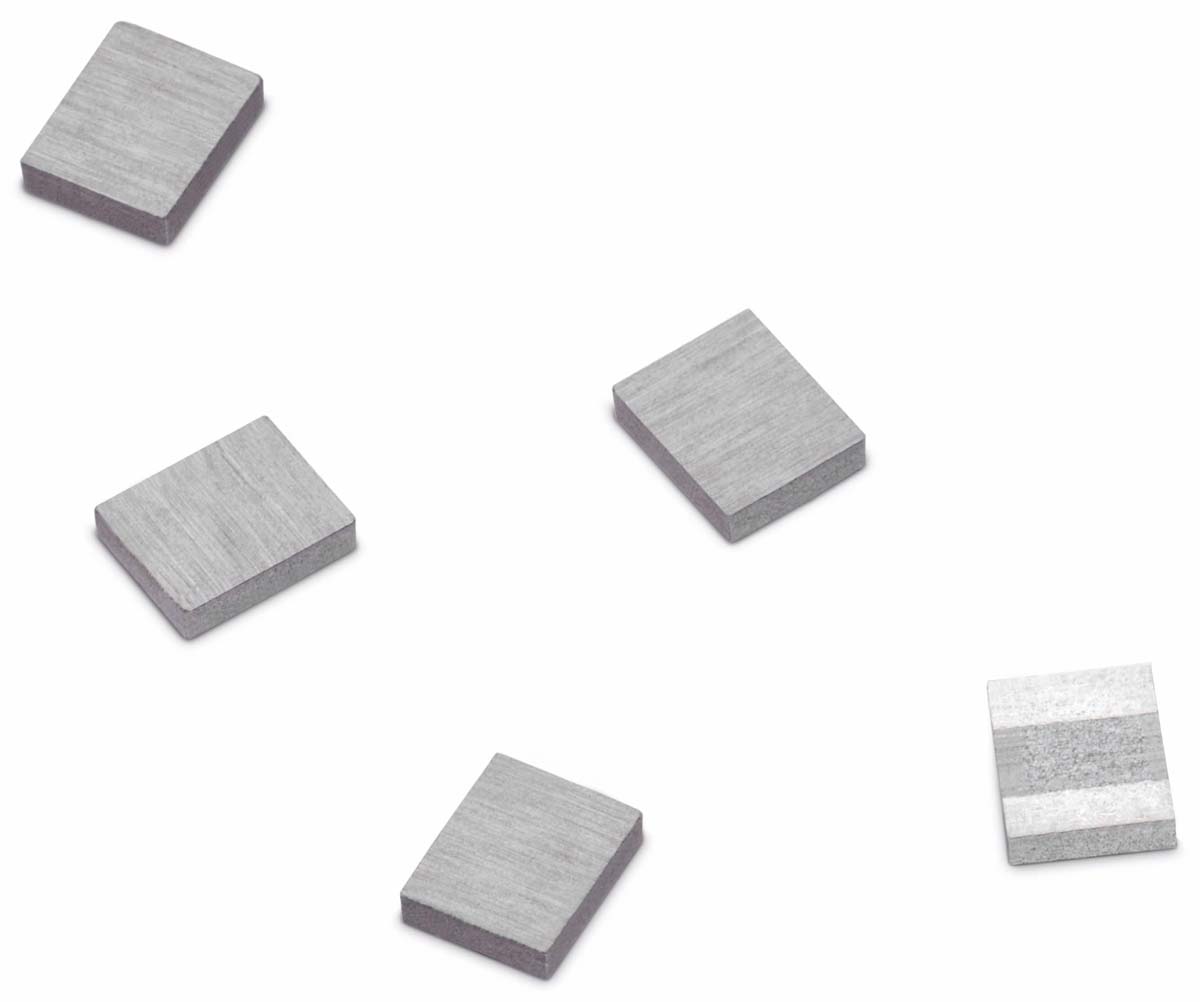

Wurth WE-MAPI Series Type 2512 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 10 μH ±20% Wire-Wound

Enrgtech Part No: ET13961899
|
Manufacturer Part No:
74438324100
|
Manufacturer: Wurth Elektronik

74438324100 Wurth WE-MAPI Series Type 2512 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 10 μH ±20% Wire-Wound

Product Information

Maximum DC Resistance:

780mΩ

Inductor Construction:

Wire-Wound

Dimensions:

2.5 x 2 x 1.2mm

Shielded:

Yes

Series:

WE-MAPI

Length:

2.5mm

Height:

1.2mm

Maximum DC Current:

700mA

Depth:

2mm

Core Material:

Magnetic Iron Alloy

Inductance:

10 μH

Maximum Self Resonant Frequency:

23MHz

Checking for live stock

This is Wurth WE-MAPI Series Type 2512 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core 10 μH ±20% Wire-Wound manufactured by Wurth Elektronik. The manufacturer part number is 74438324100. It allows up to 780mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 2.5 x 2 x 1.2mm. Shielding Options yes. The product we-mapi, is a highly preferred choice for users. Its accurate length is 2.5mm. In addition, the height is 1.2mm. While it carries 700ma of maximum DC current. The product comes in 2mm depth. The core is manufactured from highly durable and reliable magnetic iron alloy materials. The product has a 10 μh inductance value. It provides 23mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 2512 (6432m).
