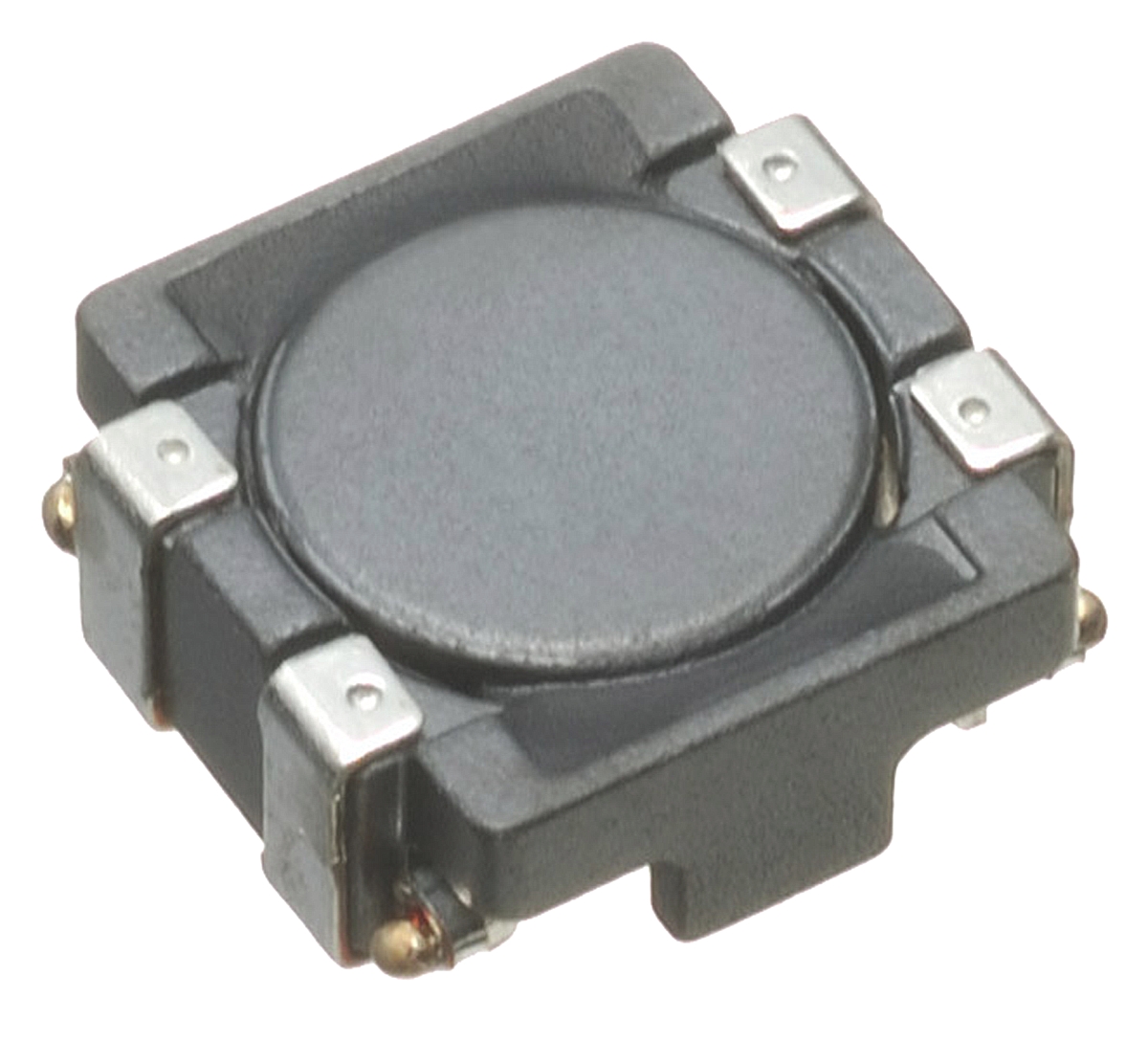

TDK ACM-V Series Type 4520V Shielded SMD Common Mode Line Filter with a Ferrite Core, Wire-Wound 1.4A Idc

ACM4520V-421-2P-T TDK ACM-V Series Type 4520V Shielded SMD Common Mode Line Filter with a Ferrite Core, Wire-Wound 1.4A Idc
TDK

Product Information

Maximum DC Resistance:
55mΩ
Inductor Construction:
Wire-Wound
Dimensions:
4.7 x 4.5 x 2mm
Shielded:
Yes
Series:
ACM-V
Length:
4.7mm
Height:
2mm
Maximum DC Current:
1.4A
Depth:
4.5mm
Core Material:
Ferrite
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+125°C
Automotive Standard:
AEC-Q200
Package/Case:
4520V
RoHs Compliant
Checking for live stock

This is ACM-V Series Type 4520V Shielded SMD Common Mode Line Filter with a Ferrite Core Wire-Wound 1.4A Idc manufactured by TDK. The manufacturer part number is ACM4520V-421-2P-T. It allows up to 55mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 4.7 x 4.5 x 2mm. Shielding Options yes. The product acm-v, is a highly preferred choice for users. Its accurate length is 4.7mm. In addition, the height is 2mm. While it carries 1.4a of maximum DC current. The product comes in 4.5mm depth. The core is manufactured from highly durable and reliable ferrite materials. Whereas, the minimum operating temperature of the product is -40°c. It has a maximum operating temperature of +125°c. The product complies with automotive standard - aec-q200. Concerning its package and casing, it is 4520v.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search ACM4520V-421-2P-T on website for other similar products.
We accept all major payment methods for all products including ET13947365. Please check your shopping cart at the time of order.
You can order TDK brand products with ACM4520V-421-2P-T directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Surface Mount Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TDK ACM-V Series Type 4520V Shielded SMD Common Mode Line Filter with a Ferrite Core, Wire-Wound 1.4A Idc. You can also check on our website or by contacting our customer support team for further order details on TDK ACM-V Series Type 4520V Shielded SMD Common Mode Line Filter with a Ferrite Core, Wire-Wound 1.4A Idc.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13947365 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TDK" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13947365.
Yes. We ship ACM4520V-421-2P-T Internationally to many countries around the world.
