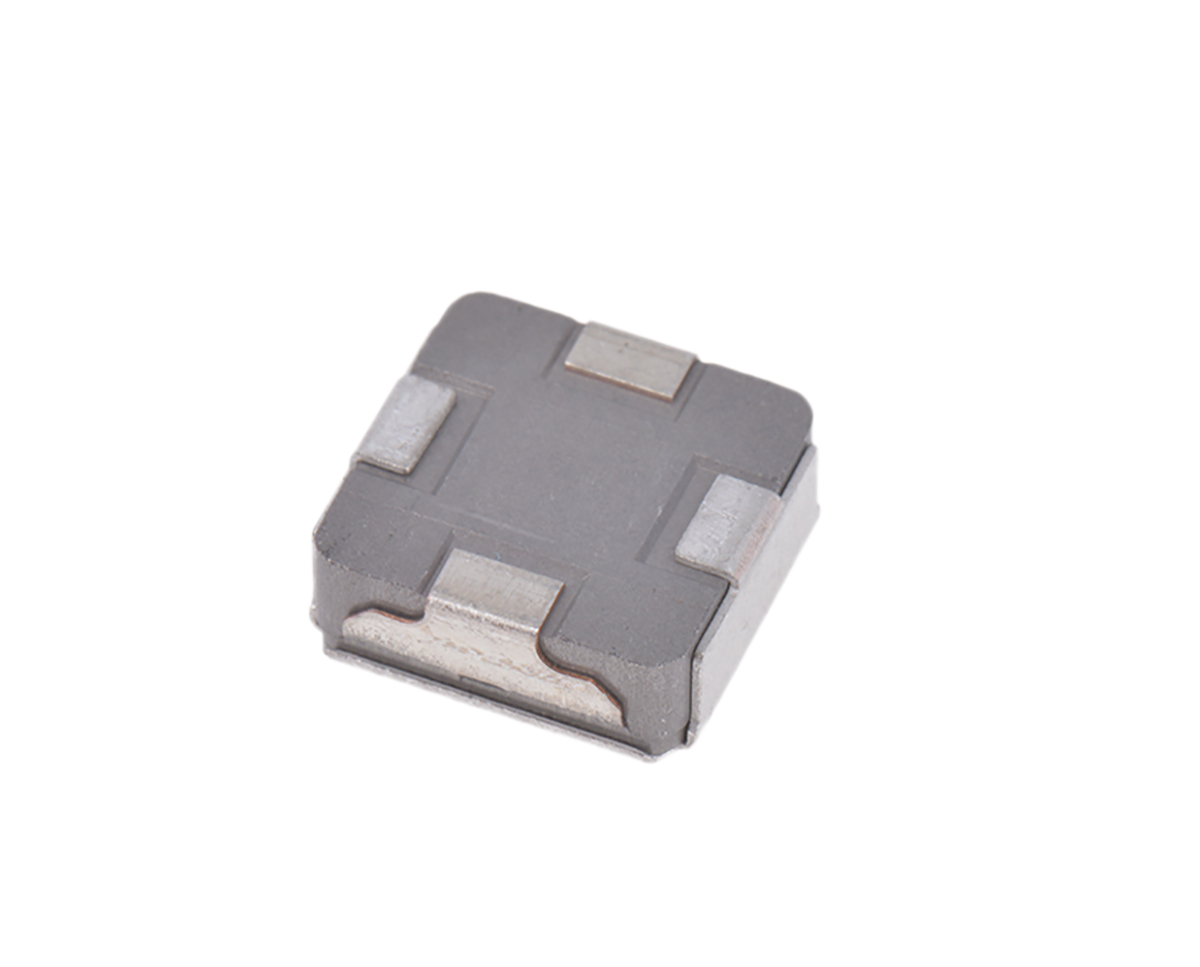

Vishay IHLE Series Type 4040 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 2.2 μH

IHLE4040DCER2R2M5A Vishay IHLE Series Type 4040 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 2.2 μH
IHLE4040DCER2R2M5A
Vishay

Product Information

Maximum DC Resistance:
8.76mΩ
Dimensions:
10.8 x 10.8 x 4.2mm
Shielded:
Yes
Series:
IHLE
Length:
10.8mm
Height:
4.2mm
Maximum DC Current:
12 (Saturation) A, 15 (Heat) A
Depth:
10.8mm
Core Material:
Metal Composite
Inductance:
2.2 μH
Maximum Self Resonant Frequency:
1MHz
Maximum Operating Temperature:
+155°C
Minimum Operating Temperature:
-55°C
Package/Case:
4040
RoHs Compliant
Checking for live stock

This is IHLE Series Type 4040 Shielded Wire-wound SMD Inductor with a Metal Composite Core 2.2 μH manufactured by Vishay. The manufacturer part number is IHLE4040DCER2R2M5A. It allows up to 8.76mω maximum DC resistance. The given dimensions of the product include 10.8 x 10.8 x 4.2mm. Shielding Options yes. The product ihle, is a highly preferred choice for users. Its accurate length is 10.8mm. In addition, the height is 4.2mm. While it carries 12 (saturation) a, 15 (heat) a of maximum DC current. The product comes in 10.8mm depth. The core is manufactured from highly durable and reliable metal composite materials. The product has a 2.2 μh inductance value. It provides 1mhz of maximum self-resonant frequency. It has a maximum operating temperature of +155°c. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 4040.

pdf icon
Low Profile, High Current Inductors with e-field Shield, IHLE4040 Series(Technical Reference)
