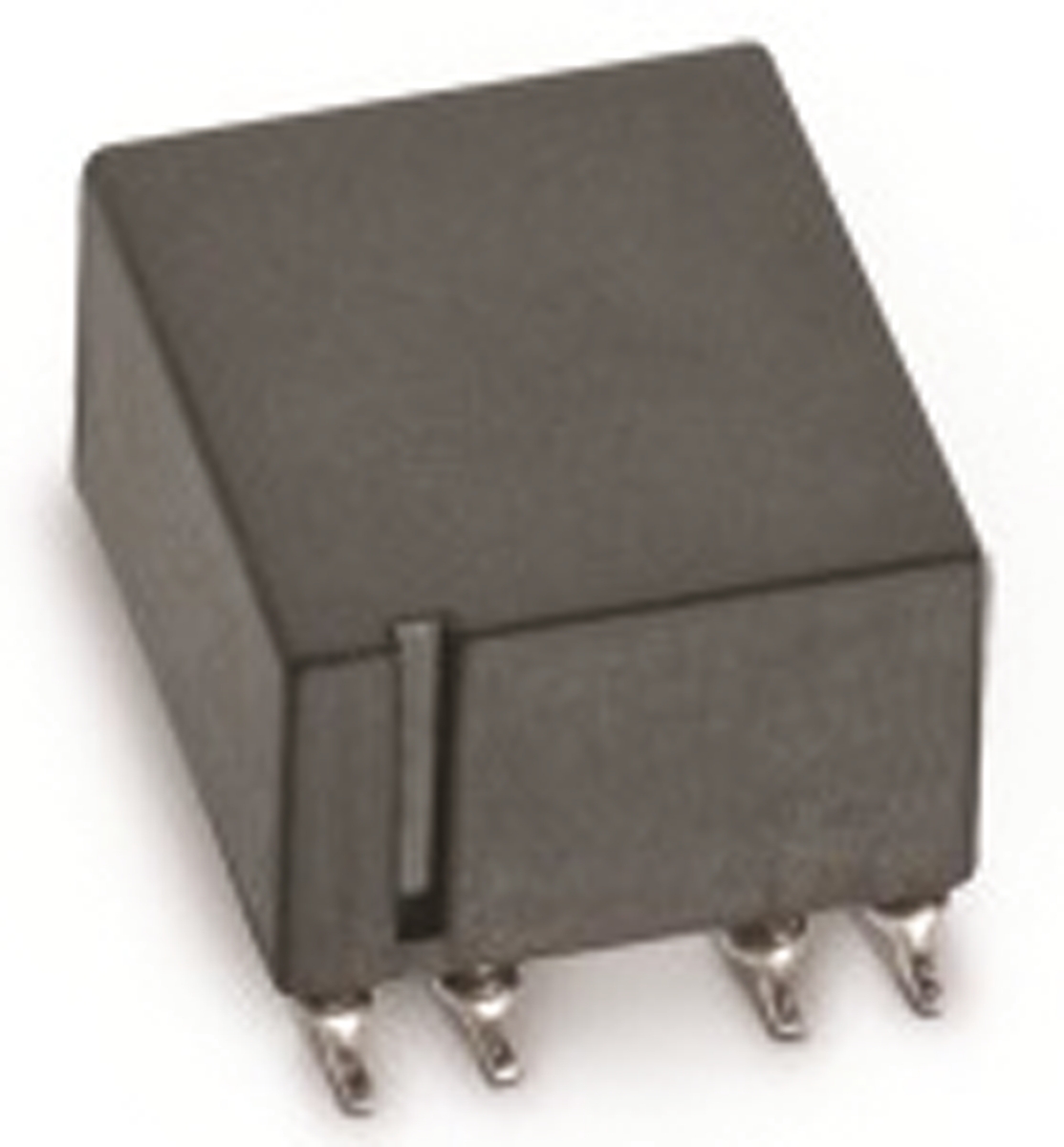

Wurth WE-UCF Series Shielded SMD Common Mode Line Filter with a Ferrite Core, 680 nH ±30% Sectional Winding 5.5A Idc

Enrgtech Part No: ET13907920
|
Manufacturer Part No:
744290121
|
Manufacturer: Wurth Elektronik

744290121 Wurth WE-UCF Series Shielded SMD Common Mode Line Filter with a Ferrite Core, 680 nH ±30% Sectional Winding 5.5A Idc

Product Information

Maximum DC Resistance:

10.5mΩ

Inductor Construction:

Sectional Winding

Dimensions:

14 x 12.5 x 7.8mm

Shielded:

Yes

Series:

WE-UCF

Length:

14mm

Height:

7.8mm

Maximum DC Current:

5.5A

Depth:

12.5mm

Core Material:

Ferrite

Inductance:

0.68 μH

Maximum Operating Temperature:

+125°C

Checking for live stock

This is Wurth WE-UCF Series Shielded SMD Common Mode Line Filter with a Ferrite Core 680 nH ±30% Sectional Winding 5.5A Idc manufactured by Wurth Elektronik. The manufacturer part number is 744290121. It allows up to 10.5mω maximum DC resistance. The inductor is designed as sectional winding inductor. The given dimensions of the product include 14 x 12.5 x 7.8mm. Shielding Options yes. The product we-ucf, is a highly preferred choice for users. Its accurate length is 14mm. In addition, the height is 7.8mm. While it carries 5.5a of maximum DC current. The product comes in 12.5mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 0.68 μh inductance value. It has a maximum operating temperature of +125°c. It features ±30% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c.

WE-UCF SMD Common Mode Line Filter - 744290121 Datasheet(Technical Reference)

WE eiSos Embedded Flyer(Technical Reference)

Your Rating

Reviews

Be the first to review.

Don’t hesitate to ask questions for better clarification.

FAQs

Yes. You can also search 744290121 on website for other similar products.

We accept all major payment methods for all products including ET13907920. Please check your shopping cart at the time of order.

You can order Wurth Elektronik brand products with 744290121 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Surface Mount Inductors category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Wurth WE-UCF Series Shielded SMD Common Mode Line Filter with a Ferrite Core, 680 nH ±30% Sectional Winding 5.5A Idc. You can also check on our website or by contacting our customer support team for further order details on Wurth WE-UCF Series Shielded SMD Common Mode Line Filter with a Ferrite Core, 680 nH ±30% Sectional Winding 5.5A Idc.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET13907920 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Wurth Elektronik" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13907920.

Yes. We ship 744290121 Internationally to many countries around the world.
