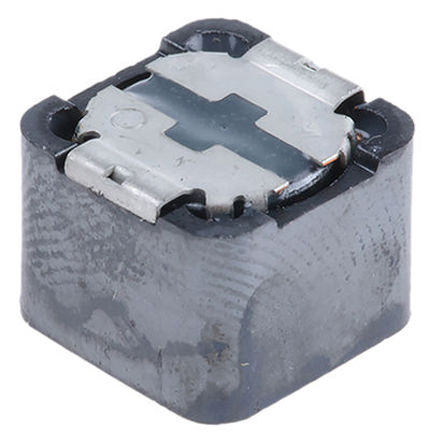

Wurth WE-PD Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 100 μH ±20% 2.5A Idc

Enrgtech Part No: ET13900218
|
Manufacturer Part No:
7447709101
|
Manufacturer: Wurth Elektronik

7447709101 Wurth WE-PD Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 100 μH ±20% 2.5A Idc

Product Information

Maximum DC Resistance:

110mΩ

Inductor Construction:

Wire-Wound

Dimensions:

12 x 12 x 10mm

Shielded:

Yes

Series:

WE-PD

Minimum Operating Temperature:

-40°C

Length:

12mm

Height:

10mm

Maximum DC Current:

2.5A

Depth:

12mm

Inductance:

100 μH

Maximum Self Resonant Frequency:

4.3MHz

Checking for live stock

This is Wurth WE-PD Series Shielded Wire-wound SMD Inductor with a Ferrite Core 100 μH ±20% 2.5A Idc manufactured by Wurth Elektronik. The manufacturer part number is 7447709101. It allows up to 110mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 12 x 12 x 10mm. Shielding Options yes. The product we-pd, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 12mm. In addition, the height is 10mm. While it carries 2.5a of maximum DC current. The product comes in 12mm depth. The product has a 100 μh inductance value. It provides 4.3mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. In addition, it is moulded yes . Concerning its package and casing, it is 1210.

8 Design Tips for Power Inductors from Wurth Elektronik - Application Note(Technical Reference)

Wurth Elektronik SMD WE-PD Power Inductor Datasheet(Technical Reference)

High Power Wireless Power Transfer for the Industrial Environment - ANP032D Application Note(Technical Reference)

7447709101 Datasheet(Technical Reference)

WE eiSos Embedded Flyer(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search 7447709101 on website for other similar products.

We accept all major payment methods for all products including ET13900218. Please check your shopping cart at the time of order.

You can order Wurth Elektronik brand products with 7447709101 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Surface Mount Inductors category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Wurth WE-PD Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 100 μH ±20% 2.5A Idc. You can also check on our website or by contacting our customer support team for further order details on Wurth WE-PD Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 100 μH ±20% 2.5A Idc.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET13900218 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Wurth Elektronik" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13900218.

Yes. We ship 7447709101 Internationally to many countries around the world.
