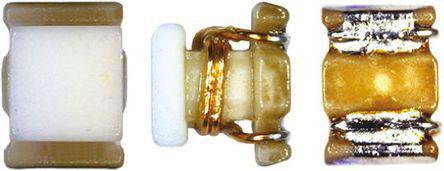

Murata LQW2BH Series Type 0805 Wire-wound SMD Inductor 6.8 nH ±0.5nH Wire-Wound 680mA Idc Q:20

LQW2BHN6N8D03L Murata LQW2BH Series Type 0805 Wire-wound SMD Inductor 6.8 nH ±0.5nH Wire-Wound 680mA Idc Q:20
Murata

Product Information

Maximum DC Resistance:
110mΩ
Inductor Construction:
Wire-Wound
Dimensions:
2 x 1.5 x 1.7mm
Shielded:
No
Series:
LQW2BH
Minimum Quality Factor:
20
Length:
2mm
Height:
1.7mm
Maximum DC Current:
680mA
Depth:
1.5mm
Inductance:
6.8 nH
Maximum Self Resonant Frequency:
5.4GHz
Maximum Operating Temperature:
+85°C
Tolerance:
±0.5nH
Minimum Operating Temperature:
-40°C
Package/Case:
0805 (2012M)
RoHs Compliant
Checking for live stock

This is LQW2BH Series Type 0805 Wire-wound SMD Inductor 6.8 nH ±0.5nH Wire-Wound 680mA Idc Q:20 manufactured by Murata. The manufacturer part number is LQW2BHN6N8D03L. It allows up to 110mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 2 x 1.5 x 1.7mm. Shielding Options no. The product lqw2bh, is a highly preferred choice for users. It has minimum 20 quality factors. Its accurate length is 2mm. In addition, the height is 1.7mm. While it carries 680ma of maximum DC current. The product comes in 1.5mm depth. The product has a 6.8 nh inductance value. It provides 5.4ghz of maximum self-resonant frequency. It has a maximum operating temperature of +85°c. It features ±0.5nh of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 0805 (2012m).

pdf icon
Chip Inductor (Chip Coil) for High Frequency Vertical Wire Wound LQW2BH_03 Series (0805 Size) Data Sheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship LQW2BHN6N8D03L Internationally to many countries around the world.
Yes. You can also search LQW2BHN6N8D03L on website for other similar products.
We accept all major payment methods for all products including ET13892345. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13892345 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Murata" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13892345.
You can order Murata brand products with LQW2BHN6N8D03L directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Surface Mount Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Murata LQW2BH Series Type 0805 Wire-wound SMD Inductor 6.8 nH ±0.5nH Wire-Wound 680mA Idc Q:20. You can also check on our website or by contacting our customer support team for further order details on Murata LQW2BH Series Type 0805 Wire-wound SMD Inductor 6.8 nH ±0.5nH Wire-Wound 680mA Idc Q:20.
