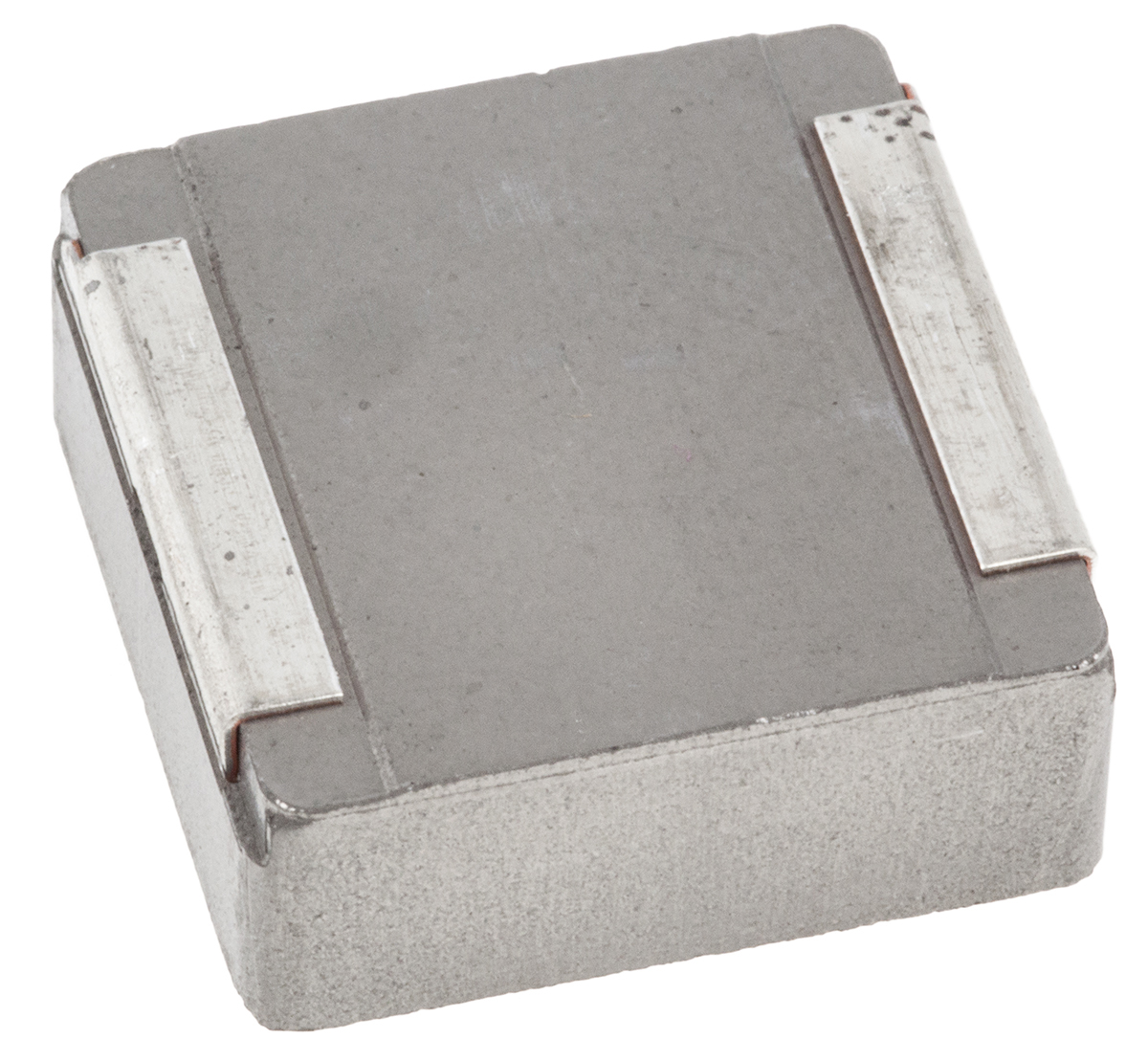

Vishay IHLP-6767GZ-01 Series Type 6767 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 15 μH ±20%

IHLP6767GZER150M01 Vishay IHLP-6767GZ-01 Series Type 6767 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 15 μH ±20%
IHLP6767GZER150M01
Vishay

Product Information

Maximum DC Resistance:
19.9mΩ
Inductor Construction:
Shielded
Dimensions:
17.15 x 17.15 x 7mm
Shielded:
Yes
Series:
IHLP
Length:
17.15mm
Height:
7mm
Maximum DC Current:
12.5A
Depth:
17.15mm
Core Material:
Metal Composite
Inductance:
15 μH
Maximum Self Resonant Frequency:
2MHz
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Minimum Operating Temperature:
-55°C
Package/Case:
6767
RoHs Compliant
Checking for live stock

This is IHLP-6767GZ-01 Series Type 6767 Shielded Wire-wound SMD Inductor with a Metal Composite Core 15 μH ±20% manufactured by Vishay. The manufacturer part number is IHLP6767GZER150M01. It allows up to 19.9mω maximum DC resistance. The inductor is designed as shielded inductor. The given dimensions of the product include 17.15 x 17.15 x 7mm. Shielding Options yes. The product ihlp, is a highly preferred choice for users. Its accurate length is 17.15mm. In addition, the height is 7mm. While it carries 12.5a of maximum DC current. The product comes in 17.15mm depth. The core is manufactured from highly durable and reliable metal composite materials. The product has a 15 μh inductance value. It provides 2mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 6767.

pdf icon
Application Note(Technical Reference)
pdf icon
Power Inductors Capabilities(Technical Reference)
pdf icon
Power Inductors 101(Technical Reference)
pdf icon
Datasheet(Technical Reference)
pdf icon
Did You Know?(Technical Reference)
pdf icon
IHLP Selection Example(Technical Reference)
pdf icon
Power Inductors Infograph(Technical Reference)
