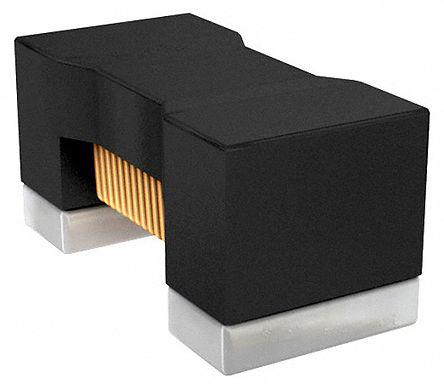

Murata LQW18A Series Type 0603 Wire-wound SMD Inductor 22 nH ±2% Wire-Wound 640mA Idc Q:42

LQW18AN22NG10D Murata LQW18A Series Type 0603 Wire-wound SMD Inductor 22 nH ±2% Wire-Wound 640mA Idc Q:42
Murata

Product Information

Maximum DC Resistance:
99mΩ
Inductor Construction:
Wire-Wound
Dimensions:
1.6 x 0.8 x 0.8mm
Maximum DC Current:
640mA
Series:
LQW18A_00
Minimum Quality Factor:
42
Length:
1.6mm
Height:
0.8mm
Depth:
0.8mm
Inductance:
22 nH
Maximum Self Resonant Frequency:
3.2GHz
Maximum Operating Temperature:
+125°C
Tolerance:
±2%
Minimum Operating Temperature:
-55°C
Package/Case:
0603 (1608M)
RoHs Compliant
Checking for live stock

This is LQW18A Series Type 0603 Wire-wound SMD Inductor 22 nH ±2% Wire-Wound 640mA Idc Q:42 manufactured by Murata. The manufacturer part number is LQW18AN22NG10D. It allows up to 99mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 1.6 x 0.8 x 0.8mm. While it carries 640ma of maximum DC current. The product lqw18a_00, is a highly preferred choice for users. It has minimum 42 quality factors. Its accurate length is 1.6mm. In addition, the height is 0.8mm. The product comes in 0.8mm depth. The product has a 22 nh inductance value. It provides 3.2ghz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±2% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 0603 (1608m).

pdf icon
Chip coils LQW18A series(Technical Reference)
