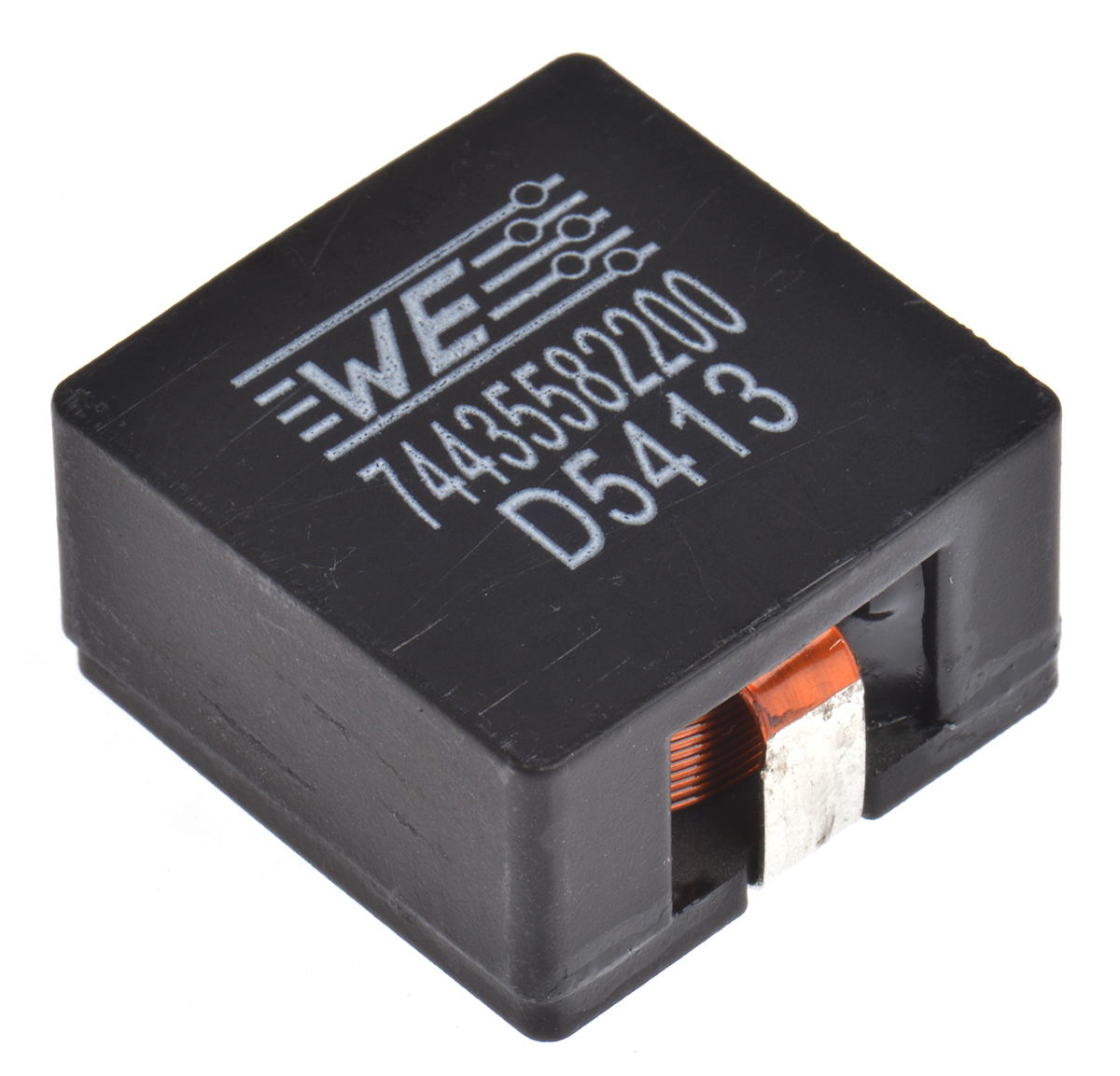

Wurth WE-HCI Series Type 2212 Shielded Wire-wound SMD Inductor with a MnZn Core, 22 μH ±20% Flat Wire Winding 15A Idc

74435582200 Wurth WE-HCI Series Type 2212 Shielded Wire-wound SMD Inductor with a MnZn Core, 22 μH ±20% Flat Wire Winding 15A Idc
74435582200
Wurth Elektronik

Product Information

Maximum DC Resistance:
7mΩ
Inductor Construction:
Flat Wire Winding
Dimensions:
22.5 x 22 x 12mm
Shielded:
Yes
Series:
WE-HCI
Minimum Operating Temperature:
-40°C
Length:
22.5mm
Height:
12mm
Maximum DC Current:
15A
Depth:
22mm
Core Material:
MnZn
Inductance:
22 μH
Maximum Self Resonant Frequency:
8.3MHz
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Automotive Standard:
AEC-Q200
Package/Case:
2212
RoHs Compliant
Checking for live stock

This is Wurth WE-HCI Series Type 2212 Shielded Wire-wound SMD Inductor with a MnZn Core 22 μH ±20% Flat Wire Winding 15A Idc manufactured by Wurth Elektronik. The manufacturer part number is 74435582200. It allows up to 7mω maximum DC resistance. The inductor is designed as flat wire winding inductor. The given dimensions of the product include 22.5 x 22 x 12mm. Shielding Options yes. The product we-hci, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 22.5mm. In addition, the height is 12mm. While it carries 15a of maximum DC current. The product comes in 22mm depth. The core is manufactured from highly durable and reliable mnzn materials. The product has a 22 μh inductance value. It provides 8.3mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. The product complies with automotive standard - aec-q200. Concerning its package and casing, it is 2212.

pdf icon
8 Design Tips for Power Inductors from Wurth Elektronik - Application Note(Technical Reference)
pdf icon
Inductor WE-HCI SMD 2212 22uH 15A Data Sheet(Technical Reference)
pdf icon
WE eiSos Embedded Flyer(Technical Reference)
