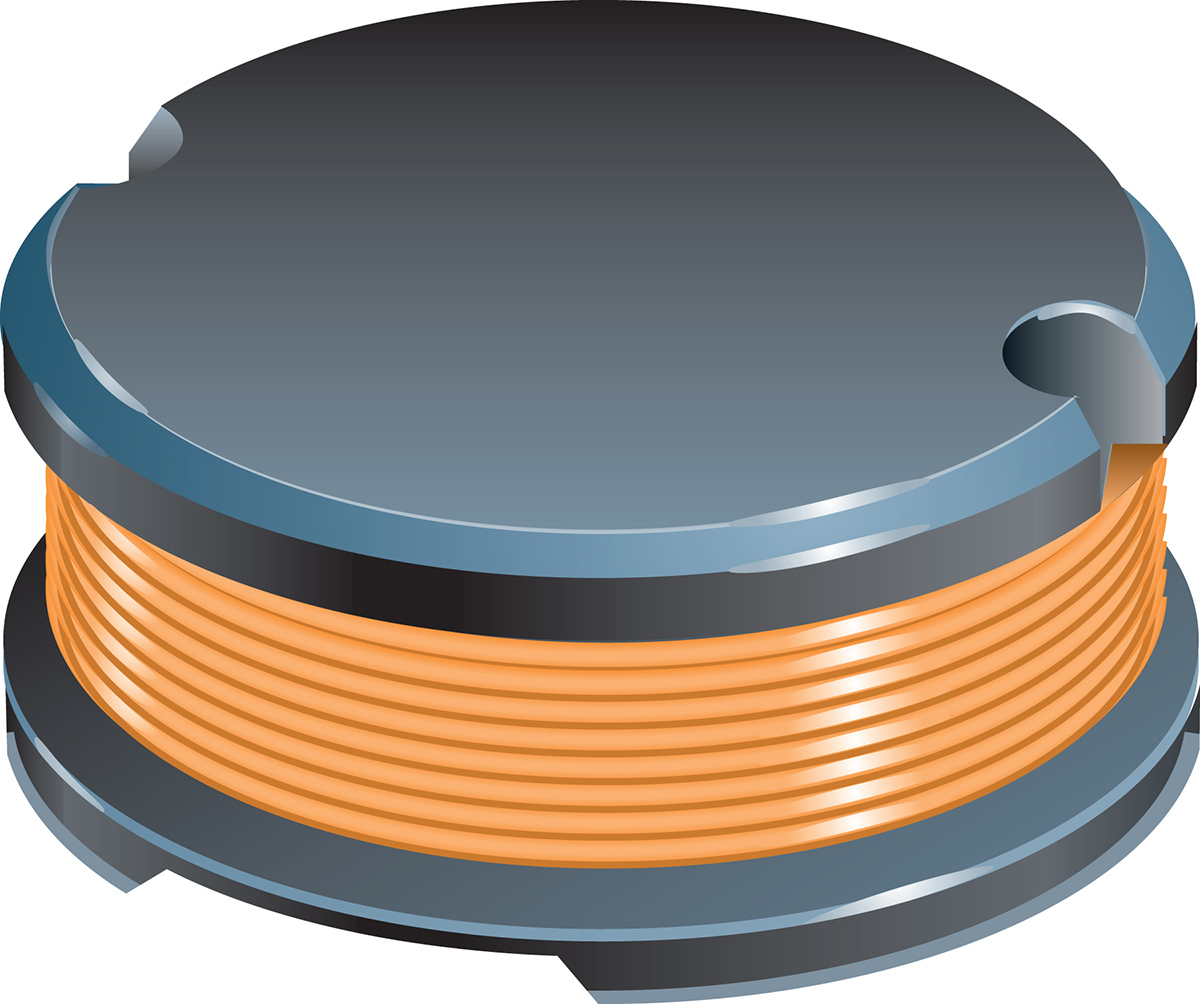

Bourns SDR0805 Series Wire-wound SMD Inductor with a Ferrite Core, 68 μH ±10% Wire-Wound 850mA Idc Q:15

SDR0805-680KL Bourns SDR0805 Series Wire-wound SMD Inductor with a Ferrite Core, 68 μH ±10% Wire-Wound 850mA Idc Q:15
Bourns

Product Information

Diameter:
7.8mm
Maximum DC Resistance:
300mΩ
Inductor Construction:
Wire-Wound
Dimensions:
7.8 x 7.8 x 5.3mm
Inductance:
0.068 mH
Shielded:
No
Series:
SDR0805
Minimum Quality Factor:
15
Length:
5.3mm
Height:
5.3mm
Maximum DC Current:
850mA
Depth:
7.8mm
Core Material:
Ferrite DR
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1818170&DisplayLogo=False
Maximum Self Resonant Frequency:
8MHz
Maximum Operating Temperature:
+125°C
Tolerance:
±10%
Minimum Operating Temperature:
-40°C
Package/Case:
0805
RoHs Compliant
Checking for live stock

This is SDR0805 Series Wire-wound SMD Inductor with a Ferrite Core 68 μH ±10% Wire-Wound 850mA Idc Q:15 manufactured by Bourns. The manufacturer part number is SDR0805-680KL. Its diameter is 7.8mm. It allows up to 300mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 7.8 x 7.8 x 5.3mm. The product has a 0.068 mh inductance value. Shielding Options no. The product sdr0805, is a highly preferred choice for users. It has minimum 15 quality factors. Its accurate length is 5.3mm. In addition, the height is 5.3mm. While it carries 850ma of maximum DC current. The product comes in 7.8mm depth. The core is manufactured from highly durable and reliable ferrite dr materials. It provides 8mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±10% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 0805.

pdf icon
Datasheet(Technical Reference)
