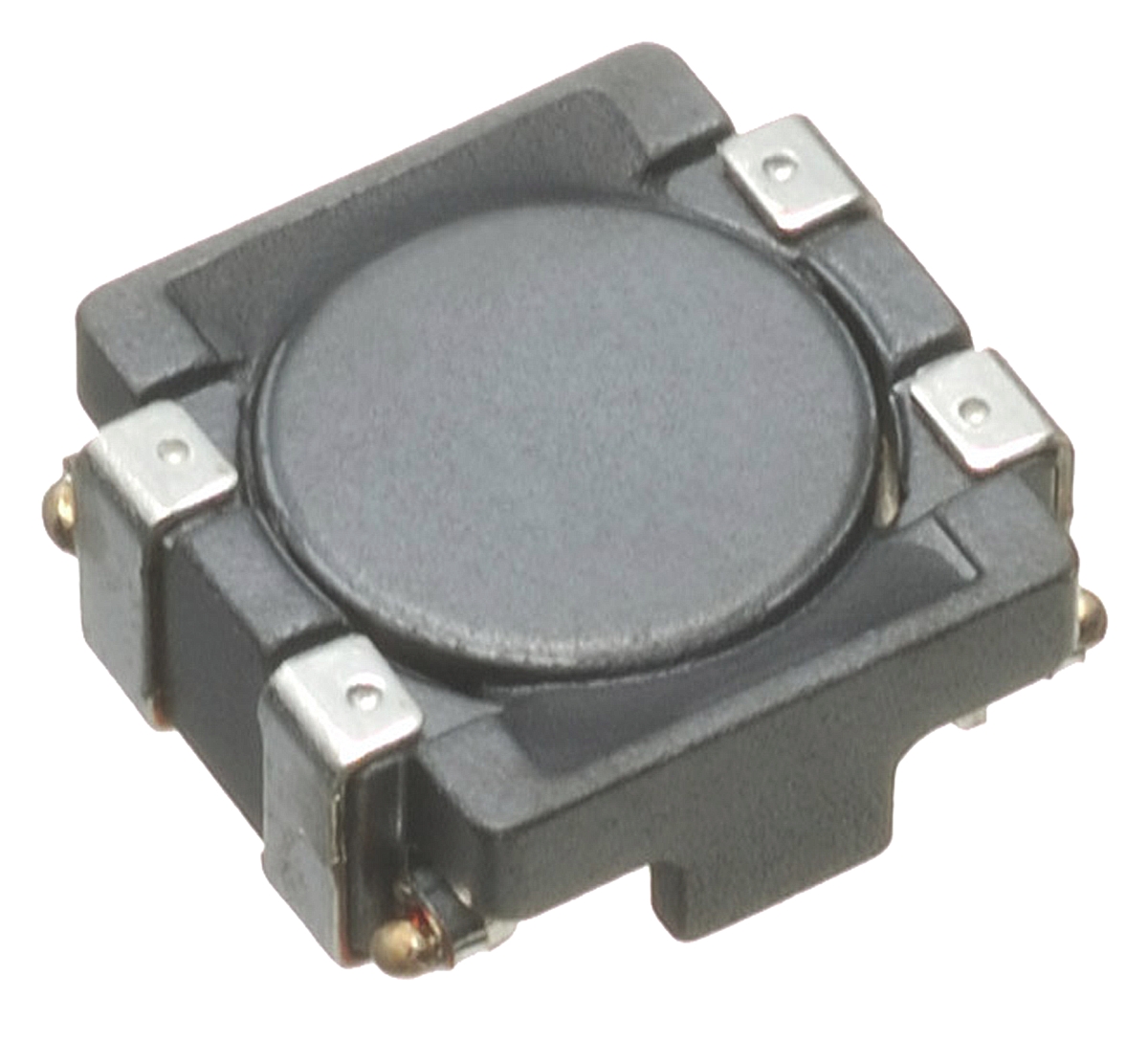

TDK ACM-V Series Type 4520V Shielded SMD Common Mode Line Filter with a Ferrite Core, Wire-Wound 1A Idc

Enrgtech Part No: ET13815358
|
Manufacturer Part No:
ACM4520V-142-2P-T
|
Manufacturer: TDK

ACM4520V-142-2P-T TDK ACM-V Series Type 4520V Shielded SMD Common Mode Line Filter with a Ferrite Core, Wire-Wound 1A Idc

Product Information

Maximum DC Resistance:

80mΩ

Inductor Construction:

Wire-Wound

Dimensions:

4.7 x 4.5 x 2mm

Shielded:

Yes

Series:

ACM-V

Length:

4.7mm

Height:

2mm

Maximum DC Current:

Depth:

4.5mm

Core Material:

Ferrite

Minimum Operating Temperature:

-40°C

Maximum Operating Temperature:

+125°C

Checking for live stock

This is ACM-V Series Type 4520V Shielded SMD Common Mode Line Filter with a Ferrite Core Wire-Wound 1A Idc manufactured by TDK. The manufacturer part number is ACM4520V-142-2P-T. It allows up to 80mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 4.7 x 4.5 x 2mm. Shielding Options yes. The product acm-v, is a highly preferred choice for users. Its accurate length is 4.7mm. In addition, the height is 2mm. While it carries 1a of maximum DC current. The product comes in 4.5mm depth. The core is manufactured from highly durable and reliable ferrite materials. Whereas, the minimum operating temperature of the product is -40°c. It has a maximum operating temperature of +125°c. The product complies with automotive standard - aec-q200. Concerning its package and casing, it is 4520v.
