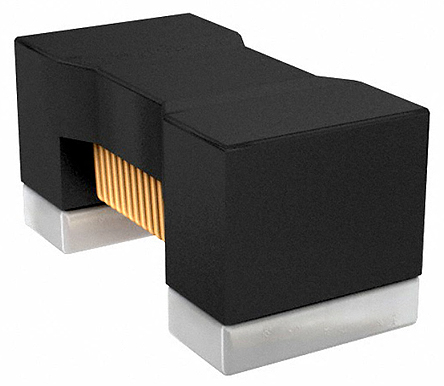

Murata LQW18A Series Type 603 Wire-wound SMD Inductor 56 nH ±5% Wire-Wound 360mA Idc Q:38

LQW18AN56NJ00D Murata LQW18A Series Type 603 Wire-wound SMD Inductor 56 nH ±5% Wire-Wound 360mA Idc Q:38
Murata

Product Information

Maximum DC Resistance:
350mΩ
Inductor Construction:
Wire-Wound
Dimensions:
1.6 x 0.8 x 0.8mm
Shielded:
No
Series:
LQW18A
Minimum Quality Factor:
38
Length:
1.6mm
Height:
0.8mm
Maximum DC Current:
360mA
Depth:
0.8mm
Inductance:
56 nH
Maximum Self Resonant Frequency:
2.4GHz
Maximum Operating Temperature:
+125°C
Tolerance:
±5%
Minimum Operating Temperature:
-55°C
Package/Case:
0603 (1608M)
RoHs Compliant
Checking for live stock

This is LQW18A Series Type 603 Wire-wound SMD Inductor 56 nH ±5% Wire-Wound 360mA Idc Q:38 manufactured by Murata. The manufacturer part number is LQW18AN56NJ00D. It allows up to 350mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 1.6 x 0.8 x 0.8mm. Shielding Options no. The product lqw18a, is a highly preferred choice for users. It has minimum 38 quality factors. Its accurate length is 1.6mm. In addition, the height is 0.8mm. While it carries 360ma of maximum DC current. The product comes in 0.8mm depth. The product has a 56 nh inductance value. It provides 2.4ghz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±5% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 0603 (1608m).
