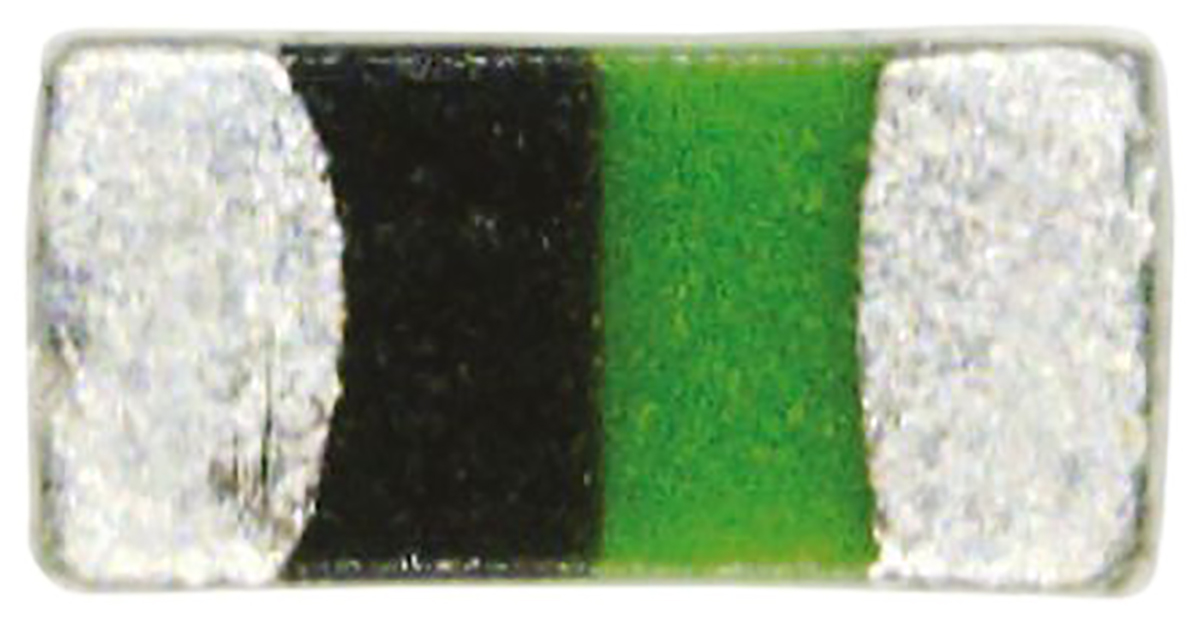

Murata LQG15HN Series Type 1005 Wire-wound SMD Inductor with a Ceramic Core, 56 nH Multi-Layer 200mA Idc Q:8

LQG15HN56NJ02D Murata LQG15HN Series Type 1005 Wire-wound SMD Inductor with a Ceramic Core, 56 nH Multi-Layer 200mA Idc Q:8
Murata

Product Information

Maximum DC Resistance:
1200mΩ
Inductor Construction:
Multilayer
Dimensions:
1 x 0.5 x 0.5mm
Maximum DC Current:
200mA
Series:
LQG15HN
Minimum Operating Temperature:
-55°C
Minimum Quality Factor:
8
Length:
1mm
Height:
0.5mm
Depth:
0.5mm
Inductance:
0.056 μH
Maximum Self Resonant Frequency:
Minimum of 800MHz
Maximum Operating Temperature:
+125°C
Tolerance:
±5%
Moulded:
Yes
Package/Case:
1005
RoHs Compliant
Checking for live stock

This is LQG15HN Series Type 1005 Wire-wound SMD Inductor with a Ceramic Core 56 nH Multi-Layer 200mA Idc Q:8 manufactured by Murata. The manufacturer part number is LQG15HN56NJ02D. It allows up to 1200mω maximum DC resistance. The inductor is designed as multilayer inductor. The given dimensions of the product include 1 x 0.5 x 0.5mm. While it carries 200ma of maximum DC current. The product lqg15hn, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. It has minimum 8 quality factors. Its accurate length is 1mm. In addition, the height is 0.5mm. The product comes in 0.5mm depth. The product has a 0.056 μh inductance value. It provides minimum of 800mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±5% of tolerance value. In addition, it is moulded yes . Concerning its package and casing, it is 1005.

pdf icon
Chip Inductor for High Frequency, LQG15HN Series(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search LQG15HN56NJ02D on website for other similar products.
We accept all major payment methods for all products including ET13804941. Please check your shopping cart at the time of order.
You can order Murata brand products with LQG15HN56NJ02D directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Surface Mount Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Murata LQG15HN Series Type 1005 Wire-wound SMD Inductor with a Ceramic Core, 56 nH Multi-Layer 200mA Idc Q:8. You can also check on our website or by contacting our customer support team for further order details on Murata LQG15HN Series Type 1005 Wire-wound SMD Inductor with a Ceramic Core, 56 nH Multi-Layer 200mA Idc Q:8.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13804941 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Murata" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13804941.
Yes. We ship LQG15HN56NJ02D Internationally to many countries around the world.
