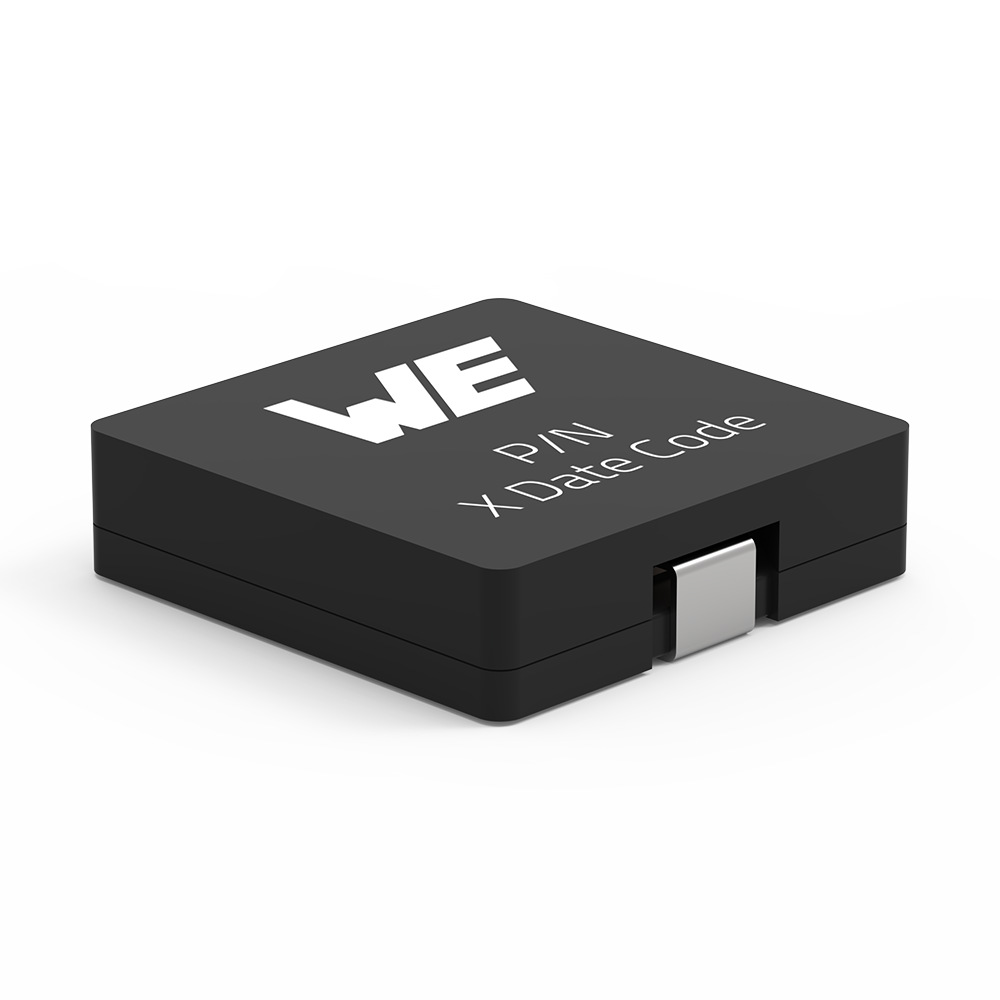

Wurth WE-HCI Series Type 5040 Shielded Wire-wound SMD Inductor with a WE-Perm2 Core, 1.5 μH ±20% Wire-Wound 9A Idc

744316150 Wurth WE-HCI Series Type 5040 Shielded Wire-wound SMD Inductor with a WE-Perm2 Core, 1.5 μH ±20% Wire-Wound 9A Idc
Wurth Elektronik

Product Information

Maximum DC Resistance:
8.15mΩ
Inductor Construction:
Wire-Wound
Dimensions:
5.3 x 5.5 x 4mm
Shielded:
Yes
Series:
WE-HCI
Length:
5.3mm
Height:
4mm
Maximum DC Current:
9A
Depth:
5.5mm
Core Material:
WE-Perm2
Inductance:
1.5 μH
Maximum Self Resonant Frequency:
110MHz
Maximum Operating Temperature:
+150°C
Tolerance:
±20%
Minimum Operating Temperature:
-40°C
Package/Case:
5040
RoHs Compliant
Checking for live stock

This is Wurth WE-HCI Series Type 5040 Shielded Wire-wound SMD Inductor with a WE-Perm2 Core 1.5 μH ±20% Wire-Wound 9A Idc manufactured by Wurth Elektronik. The manufacturer part number is 744316150. It allows up to 8.15mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 5.3 x 5.5 x 4mm. Shielding Options yes. The product we-hci, is a highly preferred choice for users. Its accurate length is 5.3mm. In addition, the height is 4mm. While it carries 9a of maximum DC current. The product comes in 5.5mm depth. The core is manufactured from highly durable and reliable we-perm2 materials. The product has a 1.5 μh inductance value. It provides 110mhz of maximum self-resonant frequency. It has a maximum operating temperature of +150°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 5040.

pdf icon
Datasheet(Technical Reference)
pdf icon
8 Design Tips for Power Inductors from Wurth Elektronik - Application Note(Technical Reference)
pdf icon
WE eiSos Embedded Flyer(Technical Reference)
