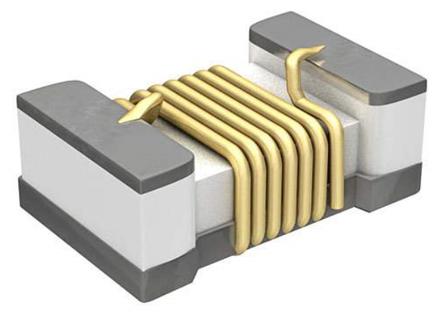

Murata LQW15A Series Type 0402 Wire-wound SMD Inductor with a Ferrite Core, 7.3 nH ±3% Wire-Wound 570mA Idc Q:25

LQW15AN7N3H00D Murata LQW15A Series Type 0402 Wire-wound SMD Inductor with a Ferrite Core, 7.3 nH ±3% Wire-Wound 570mA Idc Q:25
Murata

Product Information

Maximum DC Resistance:
130mΩ
Inductor Construction:
Wire-Wound
Dimensions:
1 x 0.6 x 0.5mm
Shielded:
No
Series:
LQW15A
Minimum Quality Factor:
25
Length:
1mm
Height:
0.5mm
Maximum DC Current:
570mA
Depth:
0.6mm
Core Material:
Ferrite
Inductance:
7.3 nH
Maximum Self Resonant Frequency:
6GHz
Maximum Operating Temperature:
+125°C
Tolerance:
±3%
Minimum Operating Temperature:
-55°C
Package/Case:
0402 (1005M)
RoHs Compliant
Checking for live stock

This is LQW15A Series Type 0402 Wire-wound SMD Inductor with a Ferrite Core 7.3 nH ±3% Wire-Wound 570mA Idc Q:25 manufactured by Murata. The manufacturer part number is LQW15AN7N3H00D. It allows up to 130mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 1 x 0.6 x 0.5mm. Shielding Options no. The product lqw15a, is a highly preferred choice for users. It has minimum 25 quality factors. Its accurate length is 1mm. In addition, the height is 0.5mm. While it carries 570ma of maximum DC current. The product comes in 0.6mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 7.3 nh inductance value. It provides 6ghz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±3% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 0402 (1005m).

pdf icon
LQW15AN_00 Series (0402 Size) Data Sheet(Technical Reference)
