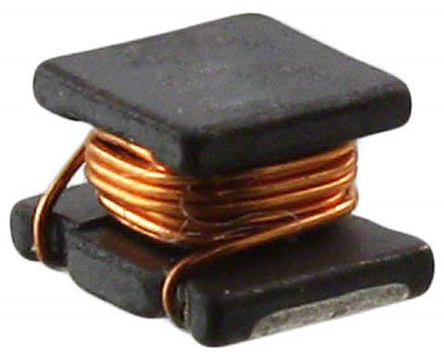

Murata LQW31H Series Type 1206 Wire-wound SMD Inductor with a Ferrite Core, 64 nH ±5% Wire-Wound 290mA Idc Q:60

LQW31HN64NJ03L Murata LQW31H Series Type 1206 Wire-wound SMD Inductor with a Ferrite Core, 64 nH ±5% Wire-Wound 290mA Idc Q:60
Murata

Product Information

Maximum DC Resistance:
180mΩ
Inductor Construction:
Wire-Wound
Dimensions:
3.2 x 1.6 x 1.8mm
Maximum DC Current:
290mA
Series:
LQW31H
Minimum Quality Factor:
60
Length:
3.2mm
Height:
1.8mm
Depth:
1.6mm
Core Material:
Ferrite
Inductance:
64 nH
Maximum Self Resonant Frequency:
1GHz
Maximum Operating Temperature:
+85°C
Tolerance:
±5%
Minimum Operating Temperature:
-40°C
Package/Case:
1206 (3216M)
RoHs Compliant
Checking for live stock

This is LQW31H Series Type 1206 Wire-wound SMD Inductor with a Ferrite Core 64 nH ±5% Wire-Wound 290mA Idc Q:60 manufactured by Murata. The manufacturer part number is LQW31HN64NJ03L. It allows up to 180mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 3.2 x 1.6 x 1.8mm. While it carries 290ma of maximum DC current. The product lqw31h, is a highly preferred choice for users. It has minimum 60 quality factors. Its accurate length is 3.2mm. In addition, the height is 1.8mm. The product comes in 1.6mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 64 nh inductance value. It provides 1ghz of maximum self-resonant frequency. It has a maximum operating temperature of +85°c. It features ±5% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 1206 (3216m).

pdf icon
LQW31H Series (1206 Size) Chip Inductor (Chip Coil) for High Frequency Vertical Wire Wound Data Sheet(Technical Reference)
