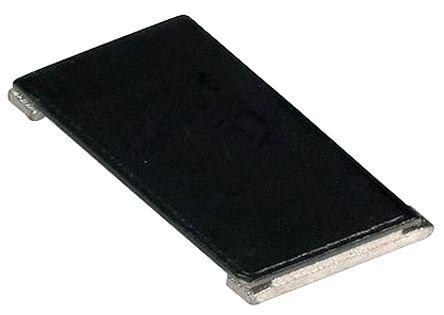

Panasonic ERJMP4 Series Metal Plate Current Sensing Surface Mount Fixed Resistor 2512 Case 3mΩ ±1% 3W ±75ppm/°C

Enrgtech Part No: ET13945524
|
Manufacturer Part No:
ERJMP4QF3M0U
|
Manufacturer: Panasonic

ERJMP4QF3M0U Panasonic ERJMP4 Series Metal Plate Current Sensing Surface Mount Fixed Resistor 2512 Case 3mΩ ±1% 3W ±75ppm/°C

Product Information

Maximum Temperature Coefficient:

+75ppm/°C

Maximum Operating Temperature:

+170°C

Dimensions:

6.3 x 0.6mm

Series:

ERJMP4

Termination Style:

SMT

Length:

6.3mm

Temperature Coefficient:

±75ppm/°C

Height:

0.6mm

Depth:

3.2mm

Minimum Temperature Coefficient:

-75ppm/°C

Technology:

Metal Plate

Minimum Operating Temperature:

-65°C

Checking for live stock

This is ERJMP4 Series Metal Plate Current Sensing Surface Mount Fixed Resistor 2512 Case 3mΩ ±1% 3W ±75ppm/°C manufactured by Panasonic. The manufacturer part number is ERJMP4QF3M0U. It features +75ppm/°c of maximum temperature coefficient. It has a maximum operating temperature of +170°c. The given dimensions of the product include 6.3 x 0.6mm. The product erjmp4, is a highly preferred choice for users. Moreover, it has smt terminal style. Its accurate length is 6.3mm. It exhibits an excellent temperature coefficient of ±75ppm/°c. In addition, the height is 0.6mm. The product comes in 3.2mm depth. It has -75ppm/°c of minimum temperature coefficient. This product use metal plate technology. Whereas, the minimum operating temperature of the product is -65°c. Moreover, the casing is designed in moulded format and style. Feature 3w of power rating. Concerning its package and casing, it is 2512. It features ±1% of tolerance value. The product complies with automotive standard - aec-q200. It carries 3 mω resistance.

Panasonic Surface Mount Resistors Technical Guide(Technical Reference)

Panasonic Recommended Land Pattern Dimensions Information Sheet(Technical Reference)

Panasonic ERJM Series Current Sensing Metal Shunt Resistors Datasheet(Technical Reference)

Datasheet(Technical Reference)

Panasonic Surface Mount Resistors Recommended Soldering Conditions Information Sheet(Technical Reference)

Panasonic Surface Mount Resistors Packaging Method Information Sheet(Technical Reference)
