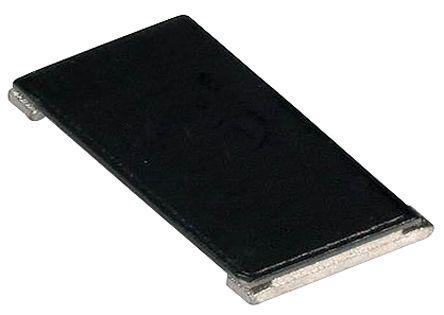

Panasonic ERJMP3 Series Metal Plate Current Sensing Surface Mount Fixed Resistor 2010 Case 9mΩ ±1% 2W ±75ppm/°C

ERJMP3PF9M0U Panasonic ERJMP3 Series Metal Plate Current Sensing Surface Mount Fixed Resistor 2010 Case 9mΩ ±1% 2W ±75ppm/°C
Panasonic

Product Information

Maximum Temperature Coefficient:
+75ppm/°C
Dimensions:
5 x 0.7mm
Series:
ERJMP3
Termination Style:
SMT
Length:
5mm
Temperature Coefficient:
±75ppm/°C
Height:
0.7mm
Depth:
2.5mm
Minimum Temperature Coefficient:
-75ppm/°C
Technology:
Metal Plate
Minimum Operating Temperature:
-65°C
Case Style:
Moulded
Power Rating:
2W
Package/Case:
2010
Tolerance:
±1%
Maximum Operating Temperature:
+170°C
Resistance:
9 mΩ
RoHs Compliant
Checking for live stock

This is ERJMP3 Series Metal Plate Current Sensing Surface Mount Fixed Resistor 2010 Case 9mΩ ±1% 2W ±75ppm/°C manufactured by Panasonic. The manufacturer part number is ERJMP3PF9M0U. It features +75ppm/°c of maximum temperature coefficient. The given dimensions of the product include 5 x 0.7mm. The product erjmp3, is a highly preferred choice for users. Moreover, it has smt terminal style. Its accurate length is 5mm. It exhibits an excellent temperature coefficient of ±75ppm/°c. In addition, the height is 0.7mm. The product comes in 2.5mm depth. It has -75ppm/°c of minimum temperature coefficient. This product use metal plate technology. Whereas, the minimum operating temperature of the product is -65°c. Moreover, the casing is designed in moulded format and style. Feature 2w of power rating. Concerning its package and casing, it is 2010. It features ±1% of tolerance value. It has a maximum operating temperature of +170°c. It carries 9 mω resistance.

pdf icon
Panasonic Recommended Land Pattern Dimensions Information Sheet(Technical Reference)
pdf icon
Panasonic ERJM Series Current Sensing Metal Shunt Resistors Datasheet(Technical Reference)
pdf icon
Panasonic Surface Mount Resistors Technical Guide(Technical Reference)
pdf icon
Panasonic Surface Mount Resistors Recommended Soldering Conditions Information Sheet(Technical Reference)
pdf icon
Panasonic Surface Mount Resistors Packaging Method Information Sheet(Technical Reference)
