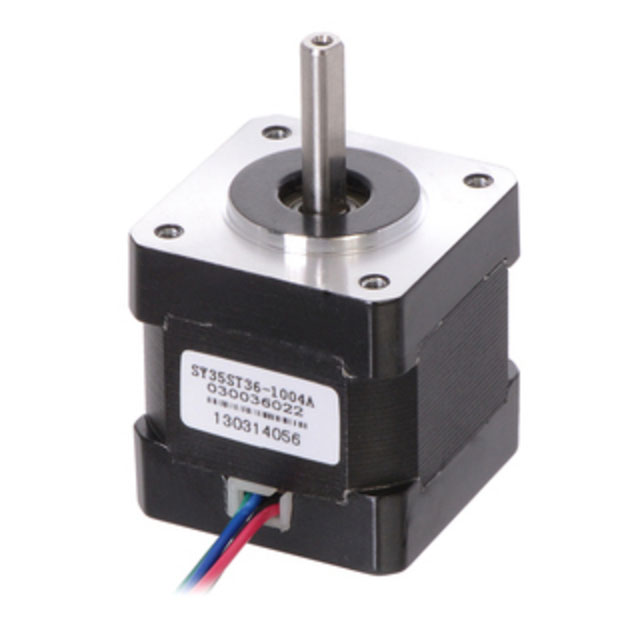

Pololu Corporation 1209

1209 Pololu Corporation
Pololu Corporation

Product Information

HTSUS:
8501.10.0000
RoHS Status:
ROHS3 Compliant
Termination Style:
Wire Leads
Operating Temperature:
-20°C ~ 50°C
Approval Agency:
-
Steps per Revolution:
200.0
NEMA Frame Size:
14
Type:
Hybrid
Coil Resistance:
2.7 Ohms
Voltage - Rated:
2.7VDC
Coil Type:
Bipolar
Rotor Inertia:
-
REACH Status:
Vendor Undefined
Mounting Hole Spacing:
1.023" (26.00mm)
Length - Shaft and Bearing:
0.827" (21.00mm)
Torque - Holding (oz-in / mNm):
20 / 141.23
Accuracy:
-
Manufacturer:
Pololu Corporation
Diameter - Shaft:
0.197" (5.00mm)
Size / Dimension:
Square - 1.386" x 1.386" (35.20mm x 35.20mm)
Current Rating (Amps):
1 A
Step Angle:
1.8°
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Flatted Shaft
Weight:
0.397 lb (180.08 g)
Series:
-
Packaging:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Pololu Corporation. The manufacturer part number is 1209. It is assigned with possible HTSUS value of 8501.10.0000. The product is rohs3 compliant. Moreover, it has wire leads terminal style. The product has -20°c ~ 50°c operating temperature range. The product provides 200.0 steps per revolution. The NEMA frame size of 14. It comes in hybrid configuration. It holds up to 2.7 ohms coil resistance. It also exhibits voltage rating of 2.7vdc. The coil is a bipolar type. In addition, it is vendor undefined. It has a 1.023" (26.00mm) mounting hole space. The typical length of shaft and bearing is 0.827" (21.00mm). A typical value of 20 / 141.23 holding torque. The pololu corporation's product offers user-desired applications. Shaft with a 0.197" (5.00mm) diameter. The product's diameters include square - 1.386" x 1.386" (35.20mm x 35.20mm). Additionally, the product's output is 1 a. Has a 1.8° step angle. Its typical moisture sensitivity level is not applicable. The splendid features of the product include flatted shaft. The typical product's weight is 0.397 lb (180.08 g). The product is designated with the ear99 code number.
