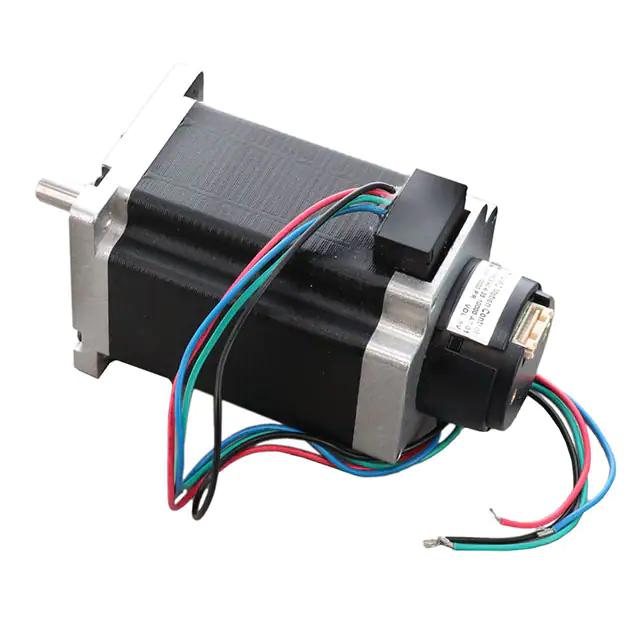

Trinamic Motion Control GmbH QSH6018-86-28-310-10K

QSH6018-86-28-310-10K Trinamic Motion Control GmbH
Trinamic Motion Control GmbH

Product Information

HTSUS:
8501.20.2000
RoHS Status:
ROHS3 Compliant
Termination Style:
Wire Leads
Operating Temperature:
-20°C ~ 50°C
Approval Agency:
CE
Steps per Revolution:
200
NEMA Frame Size:
24
Type:
Hybrid
Coil Resistance:
1.5 Ohms
Voltage - Rated:
4.17VDC
Coil Type:
Bipolar
Rotor Inertia:
840gcm²
REACH Status:
REACH Unaffected
Mounting Hole Spacing:
1.856" (47.14mm)
Length - Shaft and Bearing:
0.945" (24.00mm)
Torque - Holding (oz-in / mNm):
439 / 3100
Accuracy:
±5%
Diameter - Shaft:
0.315" (8.00mm)
Package:
Bulk
Size / Dimension:
Square - 2.362" x 2.362" (60.00mm x 60.00mm)
standardLeadTime:
18 Weeks
Current Rating (Amps):
2.8 A
Step Angle:
1.8°
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Flatted Shaft
Series:
QMot QSH6018
Base Product Number:
QSH6018
ECCN:
EAR99
Checking for live stock

This is manufactured by Trinamic Motion Control GmbH. The manufacturer part number is QSH6018-86-28-310-10K. It is assigned with possible HTSUS value of 8501.20.2000. The product is rohs3 compliant. Moreover, it has wire leads terminal style. The product has -20°c ~ 50°c operating temperature range. It is approved by ce. The product provides 200 steps per revolution. The NEMA frame size of 24. It comes in hybrid configuration. It holds up to 1.5 ohms coil resistance. It also exhibits voltage rating of 4.17vdc. The coil is a bipolar type. Features 840gcm² of rotor inertia. In addition, it is reach unaffected. It has a 1.856" (47.14mm) mounting hole space. The typical length of shaft and bearing is 0.945" (24.00mm). A typical value of 439 / 3100 holding torque. It provides high accuracy of ±5%. Shaft with a 0.315" (8.00mm) diameter. It is shipped in bulk package . The product's diameters include square - 2.362" x 2.362" (60.00mm x 60.00mm). It has a long 18 weeks standard lead time. Additionally, the product's output is 2.8 a. Has a 1.8° step angle. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include flatted shaft. The product qmot qsh6018, is a highly preferred choice for users. Moreover, it corresponds to qsh6018, a base product number of the product. The product is designated with the ear99 code number.
