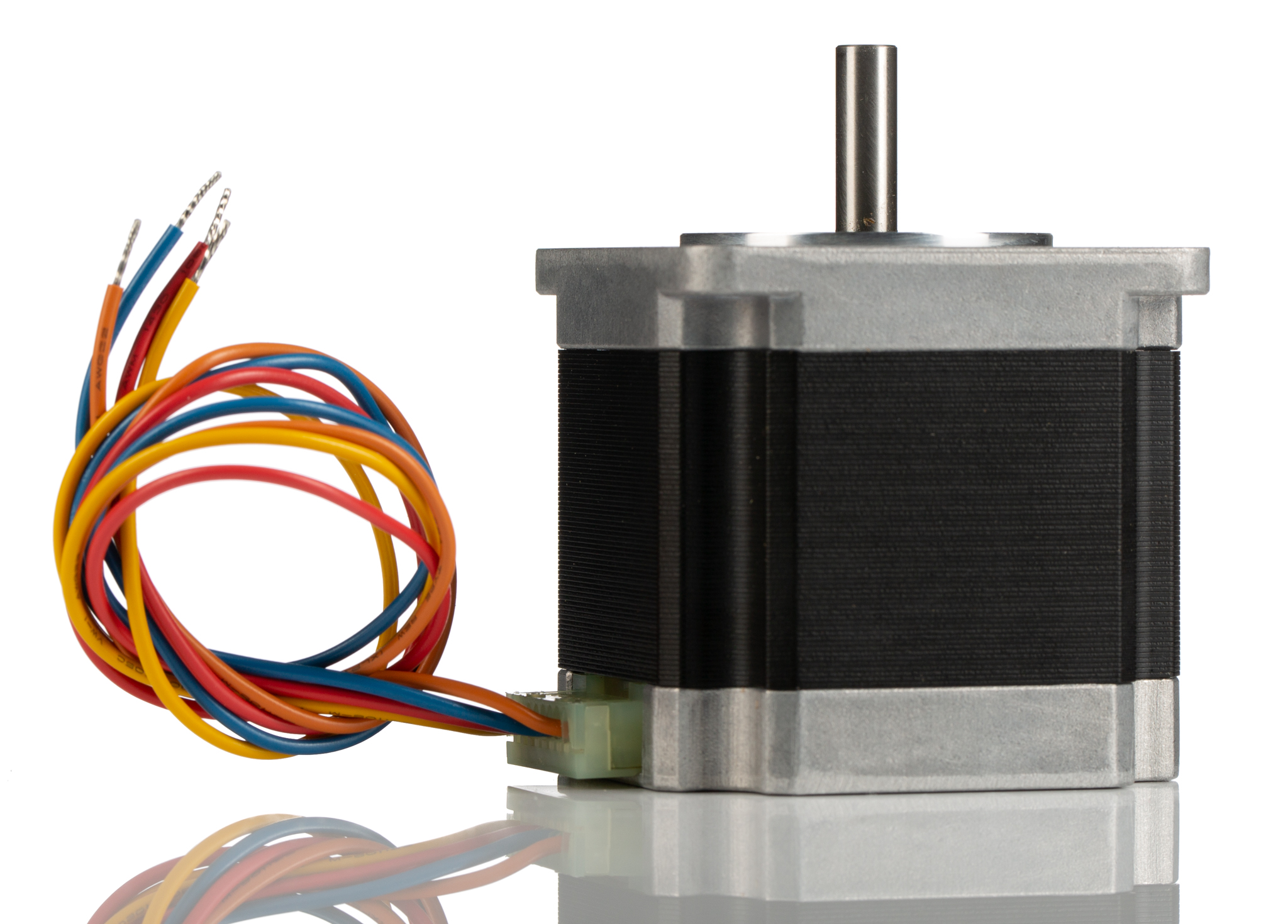

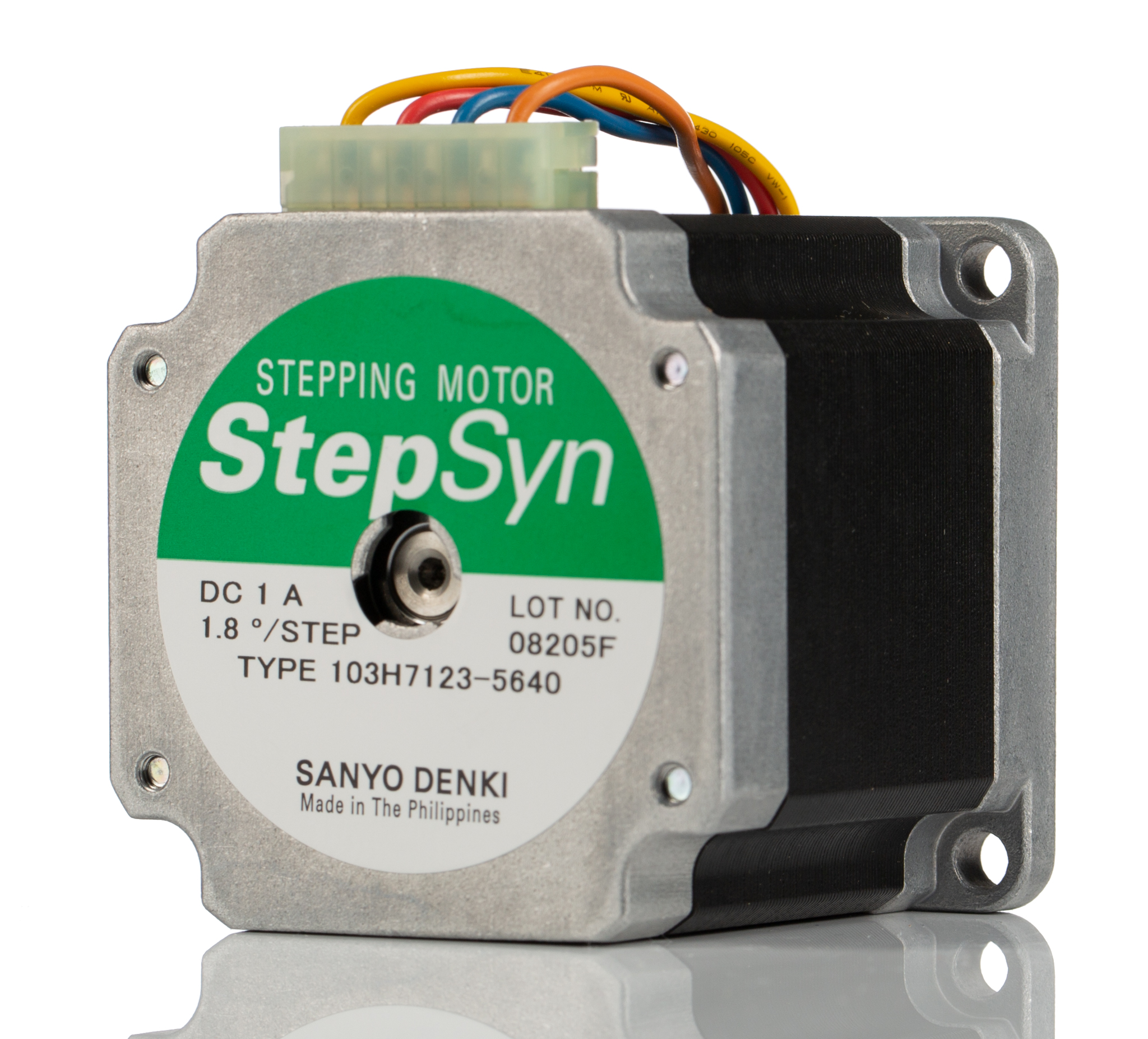

Sanyo Denki Bipolar Single Shaft Stepper Motor 1.8°, 1.0nm, 24 V dc, 1 A, 4 Wires

103H7123-5640 Sanyo Denki Bipolar Single Shaft Stepper Motor 1.8°, 1.0nm, 24 V dc, 1 A, 4 Wires
103H7123-5640
103H7123-5640
Sanyo Denki

Product Information

Frame Size:
56 x 56mm
Holding Torque:
1.0Nm
Current Rating:
1 A
Step Angle:
1.8°
Series:
103H7
Number Of Wires:
4
Stepper Motor Type:
Hybrid, Single Shaft
Winding Arrangement:
Bipolar
Depth:
55.3mm
Shaft Diameter:
6.35mm
Shaft Length:
20.6mm
Supply Voltage:
24 V
Detent Torque:
1000mNm
Resistance Per Phase:
5.7Ω
Standards Met:
CE, UL, TUV, RoHS Compliant
RoHs Compliant
Checking for live stock

This is Bipolar Single Shaft Stepper Motor 1.8° 1.0nm 24 V dc 1 A 4 Wires manufactured by Sanyo Denki. The manufacturer part number is 103H7123-5640. Its frame is 56 x 56mm in size . Its holding torque is about 1.0nm . The product has a current rating of 1 a. Has a 1.8° step angle. The product 103h7, is a highly preferred choice for users. It includes 4 premium-quality wires . However, it includes a hybrid, single shaft type stepper motor . Additionally, it has a bipolar winding arrangement . The product comes in 55.3mm depth. The diameter of the shaft is 6.35mm. The shaft is 20.6mm long. Features 24 v supply voltage. Additionally, it has 1000mnm detent torque . It has about 5.7ω resistance per phase . The product complies with all safety standards, such as ce, ul, tuv, rohs compliant.

pdf icon
103H7123-5640 Stepper Mot Data Sheet(Technical Reference)
