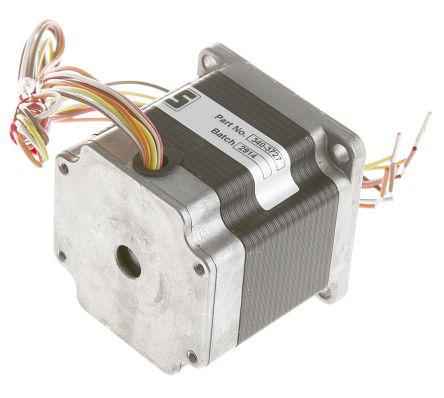

McLennan Servo Supplies Unipolar Hybrid, Permanent Magnet Stepper Motor 1.8°, 75Ncm, 70 V dc, 3 A, 8 Wires

Enrgtech Part No: ET14069907
|
Manufacturer Part No:
23HSX-206
|
Manufacturer: McLennan Servo Supplies

23HSX-206 McLennan Servo Supplies Unipolar Hybrid, Permanent Magnet Stepper Motor 1.8°, 75Ncm, 70 V dc, 3 A, 8 Wires

Product Information

Frame Size:

57.2 x 57.2mm

Number of Pole Pairs:

Holding Torque:

0.75Nm

Current Rating:

3 A

Step Angle:

1.8°

Voltage Rating:

70 V dc

Number Of Wires:

Stepper Motor Type:

Hybrid, Permanent Magnet

Shaft Diameter:

6.35mm

Shaft Length:

19mm

Resistance Per Phase:

0.72Ω

Winding Arrangement:

Unipolar

Checking for live stock

This is Unipolar Hybrid Permanent Magnet Stepper Motor 1.8° 75Ncm 70 V dc 3 A 8 Wires manufactured by McLennan Servo Supplies. The manufacturer part number is 23HSX-206. Its frame is 57.2 x 57.2mm in size . It has 2 pole pairs . Its holding torque is about 0.75nm . The product has a current rating of 3 a. Has a 1.8° step angle. Moreover, the product has a nominal 70 v dc voltage rating. It includes 8 premium-quality wires . However, it includes a hybrid, permanent magnet type stepper motor . The diameter of the shaft is 6.35mm. The shaft is 19mm long. It has about 0.72ω resistance per phase . Additionally, it has a unipolar winding arrangement .

HSX Series Stepper Motors - Data Sheet(Technical Reference)

RS OUR OFFER - 23HSX STEPPER MOTORS(Technical Reference)

Motor & Encoder Wiring Instructions(Technical Reference)

Wiring Instructions(Technical Reference)
