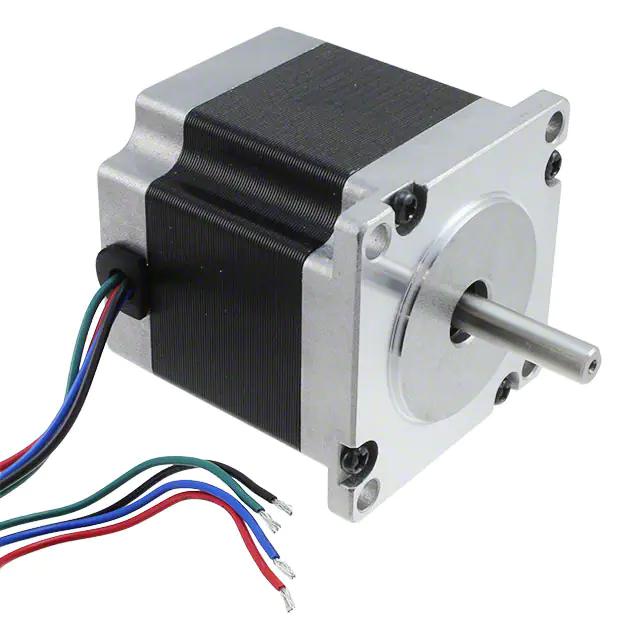

Trinamic Motion Control GmbH QSH5718-56-28-126

QSH5718-56-28-126 Trinamic Motion Control GmbH
Trinamic Motion Control GmbH

Product Information

HTSUS:
8501.20.2000
RoHS Status:
ROHS3 Compliant
Termination Style:
Wire Leads
Operating Temperature:
-20°C ~ 50°C
Approval Agency:
CE
Steps per Revolution:
200
NEMA Frame Size:
23
Type:
Hybrid
Coil Resistance:
0.9 Ohms
Voltage - Rated:
2.5VDC
Coil Type:
Bipolar
Rotor Inertia:
300gcm²
REACH Status:
REACH Unaffected
Mounting Hole Spacing:
1.856" (47.14mm)
Length - Shaft and Bearing:
0.945" (24.00mm)
Torque - Holding (oz-in / mNm):
178.43 / 1260
Accuracy:
±5%
Diameter - Shaft:
0.250" (6.35mm)
Package:
Bulk
Size / Dimension:
Square - 2.220" x 2.220" (56.40mm x 56.40mm)
standardLeadTime:
18 Weeks
Current Rating (Amps):
2.8 A
Step Angle:
1.8°
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Flatted Shaft
Weight:
1.6 lbs (725.7 g)
Series:
QMot QSH5718
Base Product Number:
QSH5718
ECCN:
EAR99
Checking for live stock

This is manufactured by Trinamic Motion Control GmbH. The manufacturer part number is QSH5718-56-28-126. It is assigned with possible HTSUS value of 8501.20.2000. The product is rohs3 compliant. Moreover, it has wire leads terminal style. The product has -20°c ~ 50°c operating temperature range. It is approved by ce. The product provides 200 steps per revolution. The NEMA frame size of 23. It comes in hybrid configuration. It holds up to 0.9 ohms coil resistance. It also exhibits voltage rating of 2.5vdc. The coil is a bipolar type. Features 300gcm² of rotor inertia. In addition, it is reach unaffected. It has a 1.856" (47.14mm) mounting hole space. The typical length of shaft and bearing is 0.945" (24.00mm). A typical value of 178.43 / 1260 holding torque. It provides high accuracy of ±5%. Shaft with a 0.250" (6.35mm) diameter. It is shipped in bulk package . The product's diameters include square - 2.220" x 2.220" (56.40mm x 56.40mm). It has a long 18 weeks standard lead time. Additionally, the product's output is 2.8 a. Has a 1.8° step angle. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include flatted shaft. The typical product's weight is 1.6 lbs (725.7 g). The product qmot qsh5718, is a highly preferred choice for users. Moreover, it corresponds to qsh5718, a base product number of the product. The product is designated with the ear99 code number.
