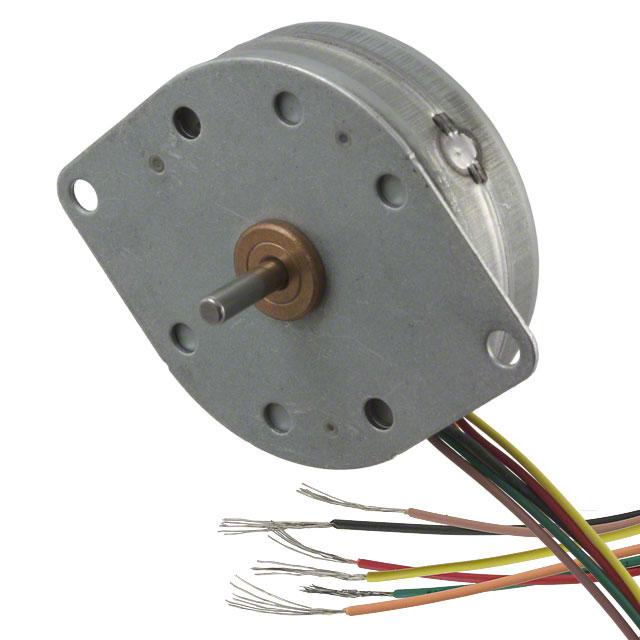

Portescap 42S048D2U

42S048D2U Portescap
Portescap

Product Information

HTSUS:
8501.10.4060
RoHS Status:
RoHS Compliant
Termination Style:
Wire Leads
Operating Temperature:
-20°C ~ 70°C
Approval Agency:
-
Voltage - Rated:
12VDC
Type:
Permanent Magnet
Coil Resistance:
75 Ohms
Step Angle:
7.5°
Coil Type:
Unipolar
Rotor Inertia:
9.5gcm²
Mounting Hole Spacing:
1.950" (49.48mm)
Length - Shaft and Bearing:
0.450" (11.43mm)
Torque - Holding (oz-in / mNm):
6.3 / 44.5
Accuracy:
±15%
Diameter - Shaft:
0.118" (3.00mm)
Package:
Bulk
Size / Dimension:
Round - 1.650" Dia (42.00mm)
Current Rating (Amps):
160 mA
Steps per Revolution:
48
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Round Shaft
Weight:
0.193 lb (87.54 g)
Series:
42S
Base Product Number:
42S048
ECCN:
EAR99
Checking for live stock

This is manufactured by Portescap. The manufacturer part number is 42S048D2U. It is assigned with possible HTSUS value of 8501.10.4060. The product is rohs compliant. Moreover, it has wire leads terminal style. The product has -20°c ~ 70°c operating temperature range. It also exhibits voltage rating of 12vdc. It comes in permanent magnet configuration. It holds up to 75 ohms coil resistance. Has a 7.5° step angle. The coil is a unipolar type. Features 9.5gcm² of rotor inertia. It has a 1.950" (49.48mm) mounting hole space. The typical length of shaft and bearing is 0.450" (11.43mm). A typical value of 6.3 / 44.5 holding torque. It provides high accuracy of ±15%. Shaft with a 0.118" (3.00mm) diameter. It is shipped in bulk package . The product's diameters include round - 1.650" dia (42.00mm). Additionally, the product's output is 160 ma. The product provides 48 steps per revolution. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include round shaft. The typical product's weight is 0.193 lb (87.54 g). The product 42s, is a highly preferred choice for users. Moreover, it corresponds to 42s048, a base product number of the product. The product is designated with the ear99 code number.
