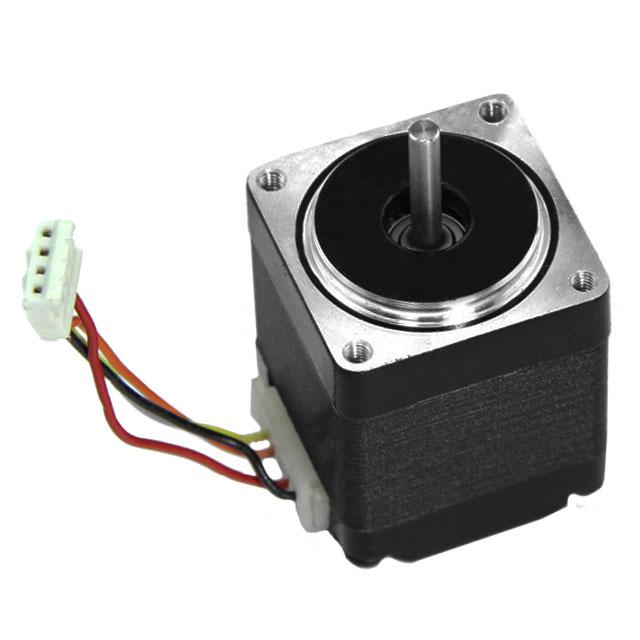

Seeed Technology Co., Ltd 316020002

316020002 Seeed Technology Co., Ltd
Seeed Technology Co., Ltd

Product Information

HTSUS:
8501.10.4040
RoHS Status:
RoHS Compliant
Termination Style:
Wire Leads with Connector
Operating Temperature:
-
Approval Agency:
-
Steps per Revolution:
200.0
NEMA Frame Size:
11
Type:
Hybrid
Coil Resistance:
11 Ohms
Voltage - Rated:
12 ~ 24VDC
Coil Type:
Bipolar
Rotor Inertia:
-
Mounting Hole Spacing:
1.281" (32.53mm)
Length - Shaft and Bearing:
-
Torque - Holding (oz-in / mNm):
8.33 / 58.84
Accuracy:
-
Manufacturer:
Seeed Technology Co., Ltd
Diameter - Shaft:
0.197" (5.00mm)
Size / Dimension:
Square - 1.110" x 1.110" (28.20mm x 28.20mm)
Current Rating (Amps):
450 mA
Step Angle:
1.8°
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Round Shaft
Weight:
0.234 lb (106.14 g)
Series:
-
Packaging:
Bulk
ECCN:
EAR99
Checking for live stock

This is manufactured by Seeed Technology Co., Ltd. The manufacturer part number is 316020002. It is assigned with possible HTSUS value of 8501.10.4040. The product is rohs compliant. Moreover, it has wire leads with connector terminal style. The product provides 200.0 steps per revolution. The NEMA frame size of 11. It comes in hybrid configuration. It holds up to 11 ohms coil resistance. It also exhibits voltage rating of 12 ~ 24vdc. The coil is a bipolar type. It has a 1.281" (32.53mm) mounting hole space. A typical value of 8.33 / 58.84 holding torque. The seeed technology co., ltd's product offers user-desired applications. Shaft with a 0.197" (5.00mm) diameter. The product's diameters include square - 1.110" x 1.110" (28.20mm x 28.20mm). Additionally, the product's output is 450 ma. Has a 1.8° step angle. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include round shaft. The typical product's weight is 0.234 lb (106.14 g). In addition, bulk is the available packaging type of the product. The product is designated with the ear99 code number.
