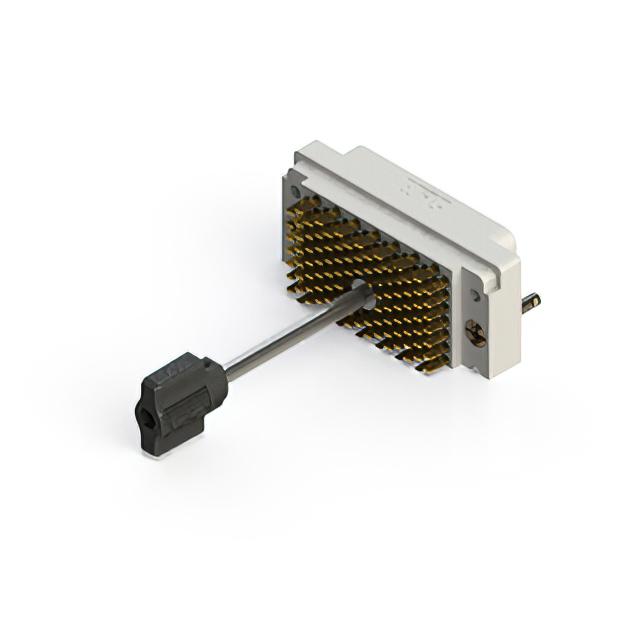

EDAC Inc. 516-120-501-301

516-120-501-301 EDAC Inc.
EDAC Inc.

Product Information

HTSUS:
8538.90.8180
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Connector Style:
Rack and Panel
Contact Finish Thickness:
10.0µin (0.25µm)
Number of Positions:
120
Connector Usage:
Backplane
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
516-120-501-301 Models
Number of Rows:
17
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/13795420
Number of Columns:
15
Contact Layout, Typical:
-
Package:
Bulk
Connector Type:
Plug, Hermaphroditic Contacts
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
8.5A
Features:
Jackscrew, Guide Pin
Mounting Type:
Free Hanging (In-Line)
Color:
Gray
Series:
516
Pitch:
0.150" (3.81mm)
Number of Positions Loaded:
All
ECCN:
EAR99
Checking for live stock

This is manufactured by EDAC Inc.. The manufacturer part number is 516-120-501-301. It is assigned with possible HTSUS value of 8538.90.8180. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. It comes in rack and panel connector style. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 120. While the connector is used as a backplane. In addition, it is reach unaffected. It comes in 17 of rows. It carries ul94 v-0 of material flammability rating. It has a sum of 15 columns. It is shipped in bulk package . plug, hermaphroditic contacts Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the product's output is 8.5a. The splendid features of the product include jackscrew, guide pin. The product is available in free hanging (in-line) configuration. It has a classic gray colour. The product 516, is a highly preferred choice for users. Moreover, the product is 0.150" (3.81mm). However, all is the Number of Positions Loaded. The product is designated with the ear99 code number.

pdf icon
516 Series Ordering Guide(Datasheets)
pdf icon
516-120-501-301 Drawing(Product Drawings)
pdf icon
EDAC REACH(Environmental Information)
