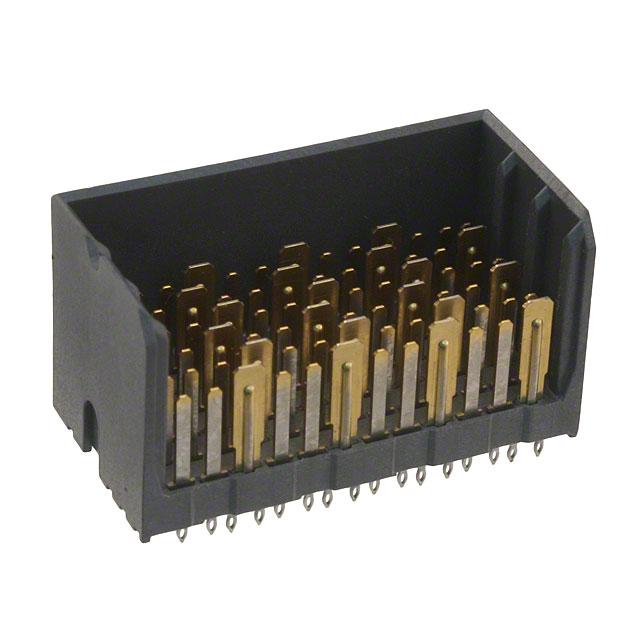

Amphenol ICC (FCI) 10091767-M0C-20DLF

10091767-M0C-20DLF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-
Connector Style:
XCede®, Right Wall
Contact Finish Thickness:
30.0µin (0.76µm)
Number of Positions:
-
Connector Usage:
Backplane
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
10091767-M0C-20DLF Models
Number of Rows:
-
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2639619
Number of Columns:
6
Contact Layout, Typical:
24 Signal Pairs, 27 Ground
Package:
Tray
Connector Type:
Header, Male Pins and Blades
Contact Finish:
Gold or Gold, GXT™
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Press-Fit
standardLeadTime:
11 Weeks
Current Rating (Amps):
-
Features:
-
Mounting Type:
Through Hole
Color:
-
Series:
XCede®
Pitch:
-
Number of Positions Loaded:
All
Base Product Number:
10091767
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is 10091767-M0C-20DLF. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. It comes in xcede®, right wall connector style. It has 30.0µin (0.76µm) of contact finishing thickness. While the connector is used as a backplane. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It has a sum of 6 columns. The typical contact layout includes 24 signal pairs, 27 ground. It is shipped in tray package . header, male pins and blades Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold or gold, gxt™ contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features press-fit termination style. It has a long 11 weeks standard lead time. The product is available in through hole configuration. The product xcede®, is a highly preferred choice for users. However, all is the Number of Positions Loaded. Moreover, it corresponds to 10091767, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Multiple Devices Location Change 23/Feb/2015(PCN Assembly/Origin)
pdf icon
XCede Vertical Headers Dimension 11/Apr/2016(PCN Design/Specification)
pdf icon
Multiple Series Plating 02/Jul/2015(PCN Design/Specification)
pdf icon
XCede High-Perf Backplane Conn Syst(Datasheets)
pdf icon
10091767 Drawing(Product Drawings)
