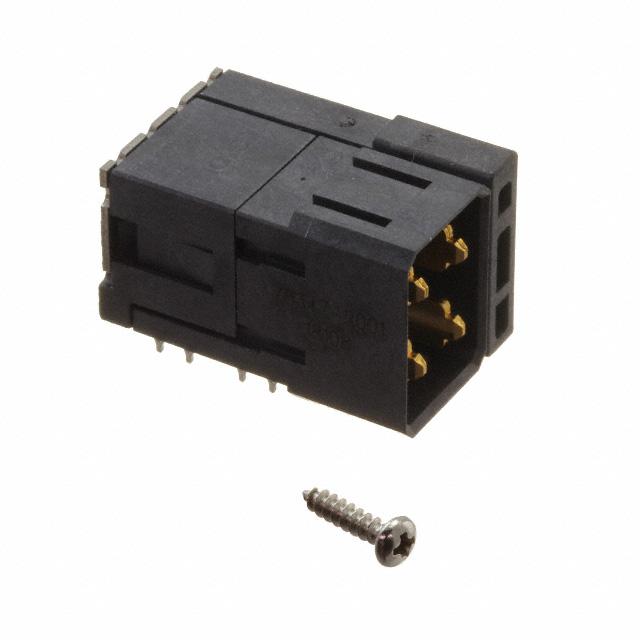

Molex 0783472001

0783472001 Molex
0783472001
Molex

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 85°C
Connector Style:
Impact, Hold Down Right
Contact Finish Thickness:
30.0µin (0.76µm)
Number of Positions:
4
Connector Usage:
-
Voltage Rating:
250V
REACH Status:
REACH Unaffected
edacadModel:
0783472001 Models
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/5116468
Number of Columns:
-
Contact Layout, Typical:
4 Power
Package:
Tray
Connector Type:
Header, Male Blades
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Press-Fit
standardLeadTime:
10 Weeks
Current Rating (Amps):
-
Features:
Board Guide
Mounting Type:
Board Edge, Through Hole, Right Angle
Color:
Black
Series:
Impact 78347
Pitch:
-
Number of Positions Loaded:
All
Base Product Number:
078347
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0783472001. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 85°c operating temperature range. It comes in impact, hold down right connector style. It has 30.0µin (0.76µm) of contact finishing thickness. The product carries possible position value of 4. Moreover, the product has a nominal 250v voltage rating. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. The typical contact layout includes 4 power. It is shipped in tray package . header, male blades Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features press-fit termination style. It has a long 10 weeks standard lead time. The splendid features of the product include board guide. The product is available in board edge, through hole, right angle configuration. It has a classic black colour. The product impact 78347, is a highly preferred choice for users. However, all is the Number of Positions Loaded. Moreover, it corresponds to 078347, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
78347-2001.pdf(3D Drawings)
pdf icon
078347x Drawing(Product Drawings)
