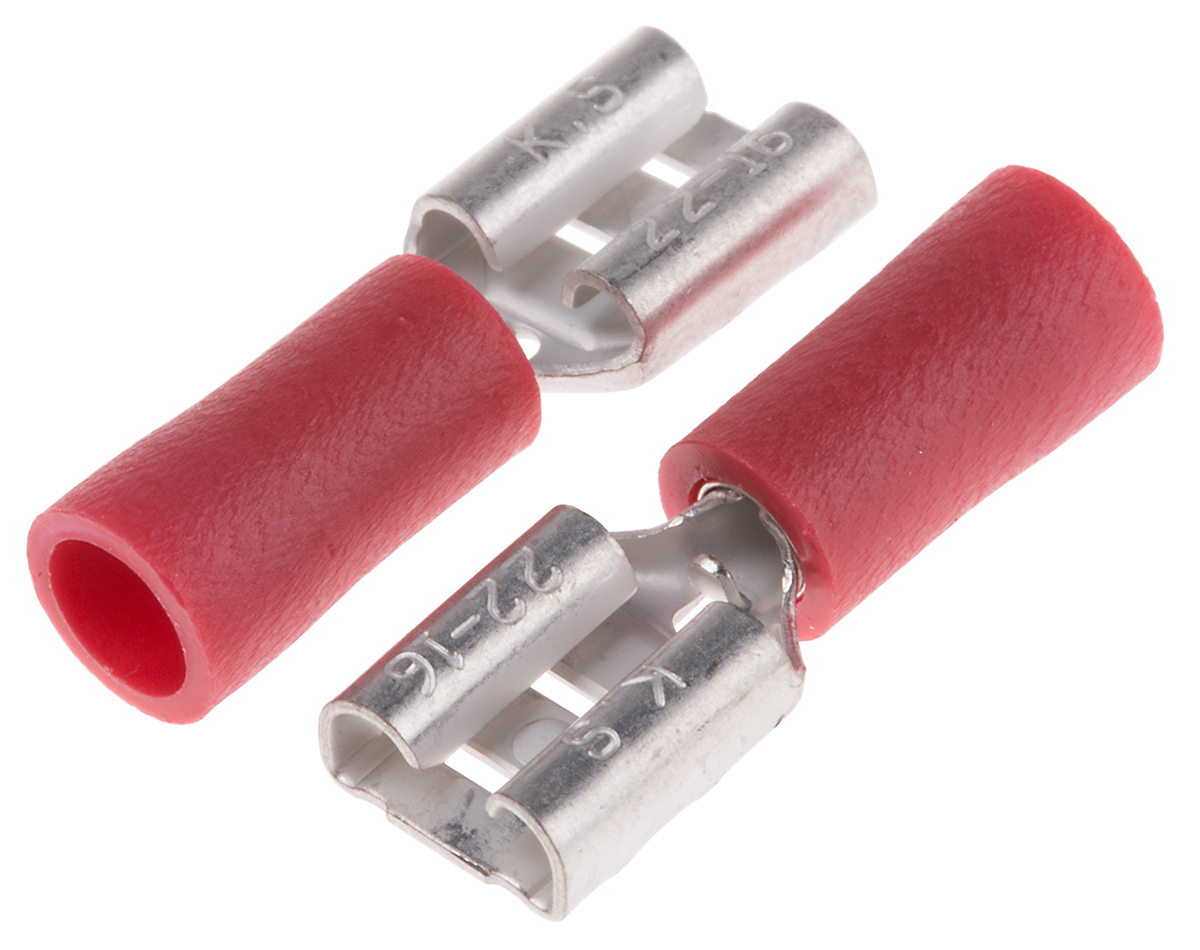

RS Pro Red Insulated Crimp Receptacle, 6.35 x 0.8mm, 0.5mm² to 1.5mm², 22AWG to 16AWG

125-1946 RS Pro Red Insulated Crimp Receptacle, 6.35 x 0.8mm, 0.5mm² to 1.5mm², 22AWG to 16AWG
RS Pro

Product Information

Shrouded/Unshrouded:
Unshrouded
Minimum Wire Size AWG:
22AWG
Tab Size:
6.35 x 0.8mm
Spade Connector Type:
Receptacle
Type:
Double Crimp
Tab Thickness:
0.8mm
Contact Plating:
Tin
Termination Method:
Crimp
Minimum Wire Size mm²:
0.5mm²
Gender:
Female
Colour:
Red
Overall Length:
20.8mm
Maximum Wire Size AWG:
16AWG
Orientation:
Straight
Tab Width:
6.35mm
Maximum Wire Size mm²:
1.5mm²
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1251946&DisplayLogo=False
Insulation:
Insulated
Wire Size:
0.5 → 1.5 mm², 22 → 16 AWG
Insulation Material:
Vinyl
Contact Material:
Brass, Copper
RoHs Compliant
Checking for live stock

This is Red Insulated Crimp Receptacle 6.35 x 0.8mm 0.5mm² to 1.5mm² 22AWG to 16AWG manufactured by RS Pro. The manufacturer part number is 125-1946. It is supplied as unshrouded. While the minimum wire size AWG includes 22awg. Its tab size is about 6.35 x 0.8mm . It has a Spade Connector Type of receptacle . It comes in double crimp configuration. The bespoke tab is 0.8mm thick. The high-quality tin is used as contact plating material. It allows crimp termination method. On the other hand, the wire has 0.5mm² of minimum size. In addition, female is the available "Gender" of the product. It has a decent red colour. It has an overall length of 20.8mm. Its maximum wires size includes 16awg. The product has a straight orientation. The tab is 6.35mm wide. The wire has a maximum size of 1.5mm². Insulation Option: insulated. Concerning wire's size, it is 0.5 → 1.5 mm², 22 → 16 awg. It has a robust vinyl insulation material. The product is made from sturdy brass, copper materials.
