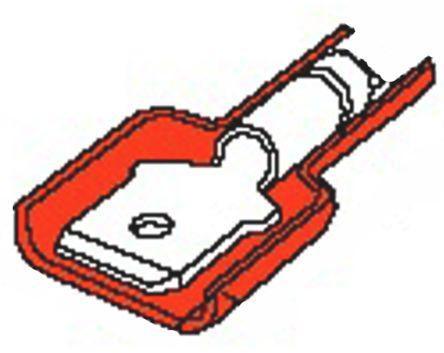

Molex 19001 Series , Red Insulated, Straight Mount Angle Crimp Tab Terminal, 0.38mm² to 0.96mm², 22AWG to 18AWG

19001-0001 Molex 19001 Series , Red Insulated, Straight Mount Angle Crimp Tab Terminal, 0.38mm² to 0.96mm², 22AWG to 18AWG
Molex

Product Information

Shrouded/Unshrouded:
Shrouded
Tab Thickness:
0.81mm
Maximum Wire Size mm²:
0.96mm²
Tab Width:
6.35mm
Orientation:
Straight
Gender:
Male
Colour:
Red
Overall Length:
24.4mm
Minimum Wire Size AWG:
22AWG
Termination Method:
Crimp
Tab Size:
6.35 x 0.81mm
Insulation Material:
Nylon
Contact Plating:
Zinc Chromate
Series:
Avikrimp 19001
Insulation:
Insulated
Maximum Wire Size AWG:
18AWG
Minimum Wire Size mm²:
0.38mm²
Contact Material:
Brass
HTSUS:
8536.90.4000
Package:
Bulk
Series:
*
RoHS Status:
RoHS Compliant
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is 19001 Series Red Insulated Straight Mount Angle Crimp Tab Terminal 0.38mm² to 0.96mm² 22AWG to 18AWG manufactured by Molex. The manufacturer part number is 19001-0001. It is supplied as shrouded. The bespoke tab is 0.81mm thick. The wire has a maximum size of 0.96mm². The tab is 6.35mm wide. The product has a straight orientation. In addition, male is the available "Gender" of the product. It has a decent red colour. It has an overall length of 24.4mm. While the minimum wire size AWG includes 22awg. It allows crimp termination method. Its tab size is about 6.35 x 0.81mm . It has a robust nylon insulation material. The high-quality zinc chromate is used as contact plating material. The product avikrimp 19001, is a highly preferred choice for users. Insulation Option: insulated. Its maximum wires size includes 18awg. On the other hand, the wire has 0.38mm² of minimum size. The product is made from sturdy brass materials. It is assigned with possible HTSUS value of 8536.90.4000. It is shipped in bulk package . The product is rohs compliant. The product is designated with the ear99 code number.
