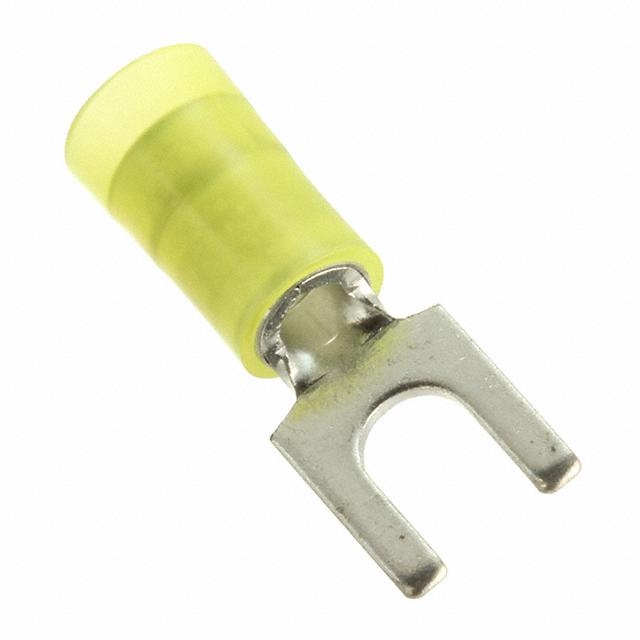

Panduit Corp PN10-10F-2K

PN10-10F-2K Panduit Corp
Panduit Corp

Product Information

HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Polyamide (PA), Nylon
Length - Overall:
1.039" (26.40mm)
title:
PN10-10F-2K
REACH Status:
REACH Unaffected
Insulation Diameter:
0.230" (5.84mm)
Terminal Type:
Standard
Manufacturer:
Panduit Corp
Length - Termination:
-
Wire Gauge:
10-12 AWG
Width - Outer Edges:
0.370" (9.40mm)
Contact Finish:
Tin
Moisture Sensitivity Level (MSL):
Not Applicable
Tongue Inside Opening:
0.200" (5.08mm)
Termination:
Crimp
standardLeadTime:
4 Weeks
Stud/Tab Size:
10 Stud
Features:
Serrated Termination
Mounting Type:
Free Hanging (In-Line)
Color:
Yellow
Series:
Pan-Term®, ReelSmart™
Packaging:
Tape & Reel (TR)
Length - Ring Center to Termination:
-
Insulation:
Insulated
ECCN:
EAR99
Base Product Number:
PN10
Contact Material:
Copper
Checking for live stock

This is manufactured by Panduit Corp. The manufacturer part number is PN10-10F-2K. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. It is designed from highly reliable polyamide (pa), nylon insulating material. The product has an integral 1.039" (26.40mm) overall length. In addition, it is reach unaffected. The product's insulation diameter includes 0.230" (5.84mm). The terminal is a standard type. The panduit corp's product offers user-desired applications. Moreover, the product has a wire gauge of 10-12 awg. Its outer edges are 0.370" (9.40mm) wide. Furthermore, the product is galvanized with excellent tin contact finishing. Its typical moisture sensitivity level is not applicable. It has given value of 0.200" (5.08mm) tongue inside opening. The product features crimp termination style. It has a long 4 weeks standard lead time. The product consists of 10 stud. The splendid features of the product include serrated termination. The product is available in free hanging (in-line) configuration. It has a classic yellow colour. The product pan-term®, reelsmart™, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. Insulation Option: insulated. The product is designated with the ear99 code number. Moreover, it corresponds to pn10, a base product number of the product. The product is made from sturdy copper materials.
