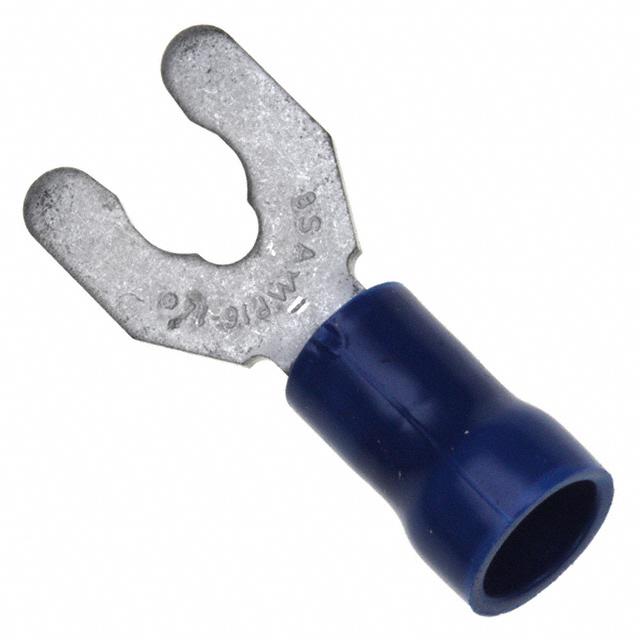

TE Connectivity AMP Connectors 52956-3

52956-3 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Poly-Vinyl Chloride (PVC)
Length - Overall:
0.921" (23.39mm)
REACH Status:
Vendor Undefined
edacadModel:
52956-3 Models
Insulation Diameter:
0.150" ~ 0.250" (3.81mm ~ 6.35mm)
edacadModelUrl:
/en/models/1131709
Terminal Type:
Spring, Snap
Length - Termination:
0.465" (11.81mm)
Package:
Tape & Reel (TR)
Wire Gauge:
14-16 AWG
Width - Outer Edges:
0.375" (9.53mm)
Contact Finish:
Tin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Tongue Inside Opening:
0.164" (4.17mm)
Termination:
Crimp
standardLeadTime:
39 Weeks
Stud/Tab Size:
8 Stud
Features:
Serrated Termination
Mounting Type:
Free Hanging (In-Line)
Color:
Blue
Series:
Plasti-Grip
Length - Ring Center to Termination:
0.281" (7.14mm)
Insulation:
Insulated
Contact Material:
Brass
Base Product Number:
52956
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 52956-3. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. It is designed from highly reliable poly-vinyl chloride (pvc) insulating material. The product has an integral 0.921" (23.39mm) overall length. In addition, it is vendor undefined. The product's insulation diameter includes 0.150" ~ 0.250" (3.81mm ~ 6.35mm). The terminal is a spring, snap type. While the terminations is 0.465" (11.81mm) long. It is shipped in tape & reel (tr) package . Moreover, the product has a wire gauge of 14-16 awg. Its outer edges are 0.375" (9.53mm) wide. Furthermore, the product is galvanized with excellent tin contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has given value of 0.164" (4.17mm) tongue inside opening. The product features crimp termination style. It has a long 39 weeks standard lead time. The product consists of 8 stud. The splendid features of the product include serrated termination. The product is available in free hanging (in-line) configuration. It has a classic blue colour. The product plasti-grip, is a highly preferred choice for users. The ring from center to termination is 0.281" (7.14mm) long. Insulation Option: insulated. The product is made from sturdy brass materials. Moreover, it corresponds to 52956, a base product number of the product. The product is designated with the ear99 code number.
