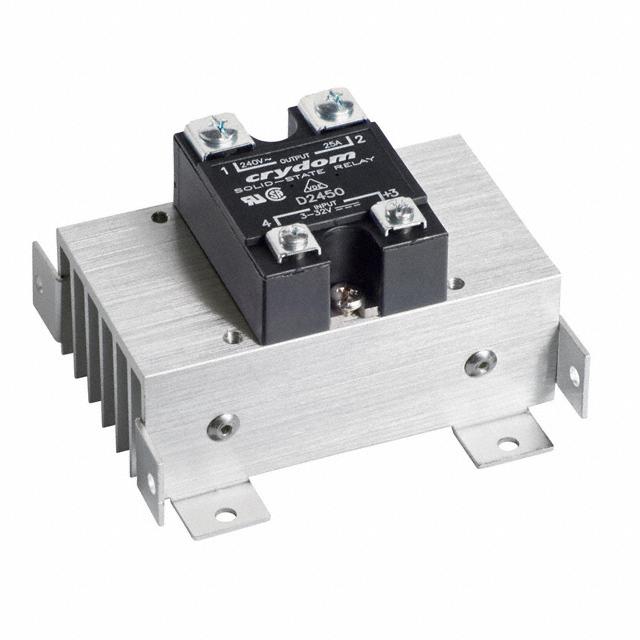

Sensata-Crydom HS172-D2450

HS172-D2450 Sensata-Crydom
HS172-D2450
Sensata-Crydom

Product Information

Dimensions:
104.7 x 85.3 x 67.5mm
Maximum Load Voltage:
280 V rms
Output Device:
Triac
Load Voltage Range:
24 → 280V ac
Minimum Control Voltage:
3 V dc
Off State Leakage Current:
10 mA
Switching Type:
Zero Cross
Maximum Operating Temperature:
+80°C
Control Voltage Range:
3 → 32 V dc
Operating Temperature Range:
-40 → +80°C
Minimum Load Current:
0.04 A
Length:
104.7mm
Maximum Turn On Time:
1/2 cycle
Maximum Load Current:
36 A rms
Mounting Type:
Panel Mount
Series:
HS172
Depth:
85.3mm
Height:
67.5mm
Minimum Operating Temperature:
-40°C
Maximum Control Voltage:
32 V
Minimum Load Voltage:
24 V ac
Qualification:
-
HTSUS:
8536.41.0060
RoHS Status:
RoHS Compliant
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 80°C
Approval Agency:
CE, CSA, cURus, VDE
Package / Case:
Hockey Puck with Heat Sink
Voltage - Input:
3 ~ 32VDC
Load Current:
36 A
Output Type:
AC, Zero Cross
edacadModel:
HS172-D2450 Models
edacadModelUrl:
/en/models/2120178
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO (1 Form A)
standardLeadTime:
24 Weeks
Mounting Type:
Chassis Mount
Grade:
-
Series:
HS
Voltage - Load:
24 V ~ 280 V
Supplier Device Package:
-
Packaging:
Bulk
Base Product Number:
HS172
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Sensata-Crydom. The manufacturer part number is HS172-D2450. The given dimensions of the product include 104.7 x 85.3 x 67.5mm. While its maximum load voltage is 280 v rms. Its output device includes triac. Its load voltage range is about 24 → 280v ac . Additionally, it has a minimum 3 v dc control voltage . Additionally, its off state leakage current is 10 ma . This product uses zero cross switching mechanism. It has a maximum operating temperature of +80°c. Moreover, it has a typical 3 → 32 v dc control voltage range . The product has -40 → +80°c of operating temperature range. The product has a minimum 0.04 a load current . Its accurate length is 104.7mm. The product has a maximum 1/2 cycle turn on time . It carries 36 a rms maximum load current. The product is available in panel mount configuration. The product hs172, is a highly preferred choice for users. The product comes in 85.3mm depth. In addition, the height is 67.5mm. Whereas, the minimum operating temperature of the product is -40°c. The product has a maximum 32 v control voltage . It carries up to 24 v ac minimum load voltage. It is assigned with possible HTSUS value of 8536.41.0060. The product is rohs compliant. Moreover, it has screw terminal terminal style. The product has -40°c ~ 80°c operating temperature range. It is approved by ce, csa, curus, vde. Moreover, the product comes in hockey puck with heat sink. The possible product's input voltage is 3 ~ 32vdc. It has a typical 36 a load current. Furthermore, it has aac, zero cross output. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no (1 form a) circuit. It has a long 24 weeks standard lead time. The product is available in chassis mount configuration. The product hs, is a highly preferred choice for users. The given load voltage is 24 v ~ 280 v. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to hs172, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
HS172 Series Assemblies Data Sheet(Technical Reference)
pdf icon
Declaration of Conformity 2014/35/EU(Technical Reference)
pdf icon
HS Series, Heat Sinks & SSR Assemblies(Datasheets)
pdf icon
HS172 Series Assy(Datasheets)
pdf icon
CE Declaration of Conformity(Other Related Documents)
