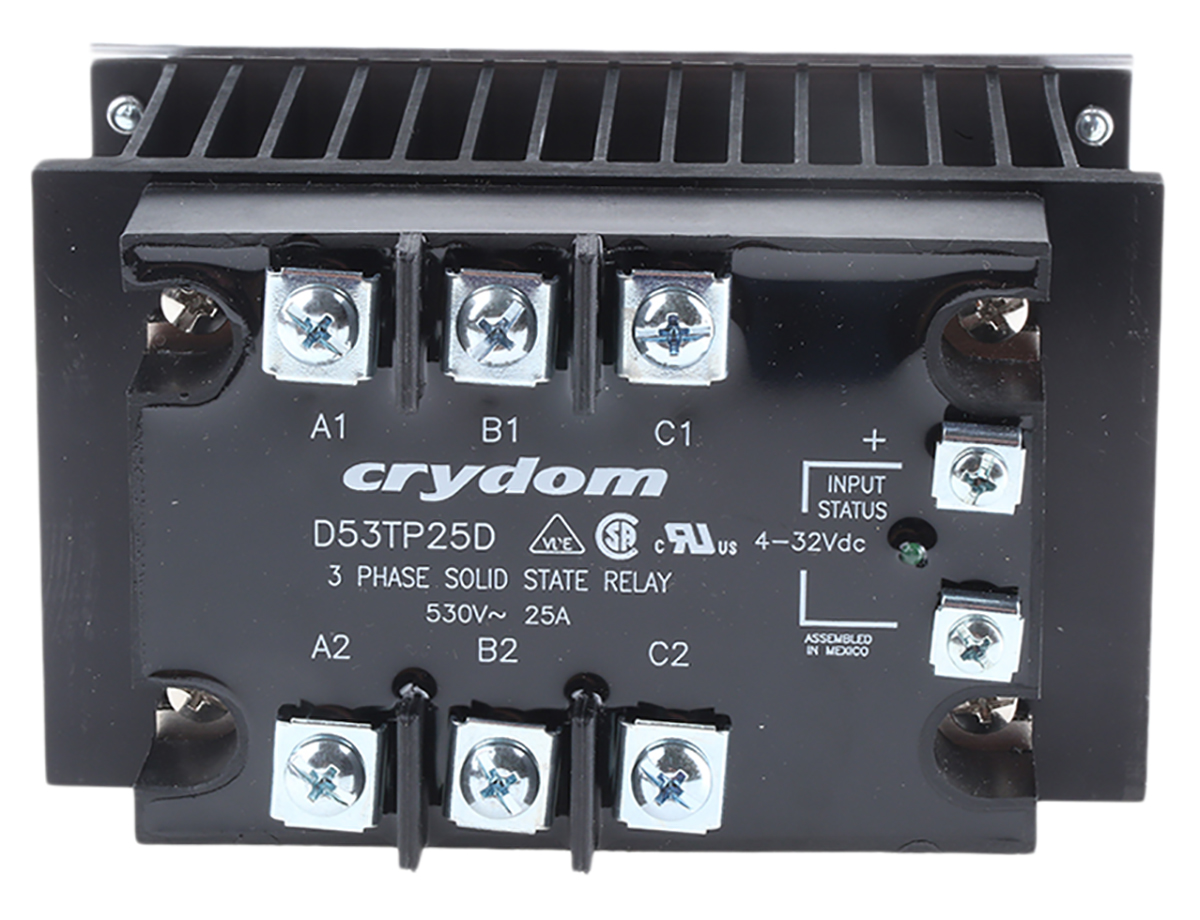

Sensata-Crydom HS103DR-D53TP25D

HS103DR-D53TP25D Sensata-Crydom
HS103DR-D53TP25D
HS103DR-D53TP25D
Sensata-Crydom

Product Information

Maximum Load Voltage:
530 V ac
Maximum Load Current:
55 A
Load Voltage Range:
48 → 530V ac
Dimensions:
132.1 x 76.2 x 99.2mm
Mounting Type:
DIN Rail
Series:
HS103DR
Minimum Load Current:
0.05 A
Length:
132.1mm
Height:
99.2mm
Off State Leakage Current:
10 mA
Depth:
76.2mm
Maximum Turn On Time:
1/2 cycle
Minimum Load Voltage:
48 V ac
Maximum Control Voltage:
32 V
Control Voltage Range:
3 → 32 V dc
Switching Type:
Zero Cross
Minimum Control Voltage:
3 V dc
HTSUS:
8536.41.0060
RoHS Status:
RoHS Compliant
Termination Style:
Screw Terminal
Package / Case:
Hockey Puck with Heat Sink
Voltage - Input:
3 ~ 32VDC
Load Current:
55 A
Output Type:
AC, Zero Cross
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO (1 Form A)
standardLeadTime:
24 Weeks
Mounting Type:
DIN Rail
Series:
HS
Voltage - Load:
48 V ~ 530 V
Supplier Device Package:
-
Base Product Number:
HS103
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Sensata-Crydom. The manufacturer part number is HS103DR-D53TP25D. While its maximum load voltage is 530 v ac. It carries 55 a maximum load current. Its load voltage range is about 48 → 530v ac . The given dimensions of the product include 132.1 x 76.2 x 99.2mm. The product is available in din rail configuration. The product hs103dr, is a highly preferred choice for users. The product has a minimum 0.05 a load current . Its accurate length is 132.1mm. In addition, the height is 99.2mm. Additionally, its off state leakage current is 10 ma . The product comes in 76.2mm depth. The product has a maximum 1/2 cycle turn on time . It carries up to 48 v ac minimum load voltage. The product has a maximum 32 v control voltage . Moreover, it has a typical 3 → 32 v dc control voltage range . This product uses zero cross switching mechanism. Additionally, it has a minimum 3 v dc control voltage . It is assigned with possible HTSUS value of 8536.41.0060. The product is rohs compliant. Moreover, it has screw terminal terminal style. Moreover, the product comes in hockey puck with heat sink. The possible product's input voltage is 3 ~ 32vdc. It has a typical 55 a load current. Furthermore, it has aac, zero cross output. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no (1 form a) circuit. It has a long 24 weeks standard lead time. The product hs, is a highly preferred choice for users. The given load voltage is 48 v ~ 530 v. Moreover, it corresponds to hs103, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Declaration of Conformity 2014/35/EU(Technical Reference)
pdf icon
HS103DR Series Assy(Datasheets)
pdf icon
HS Series, Heat Sinks & SSR Assemblies(Datasheets)
pdf icon
CE Declaration of Conformity(Other Related Documents)
