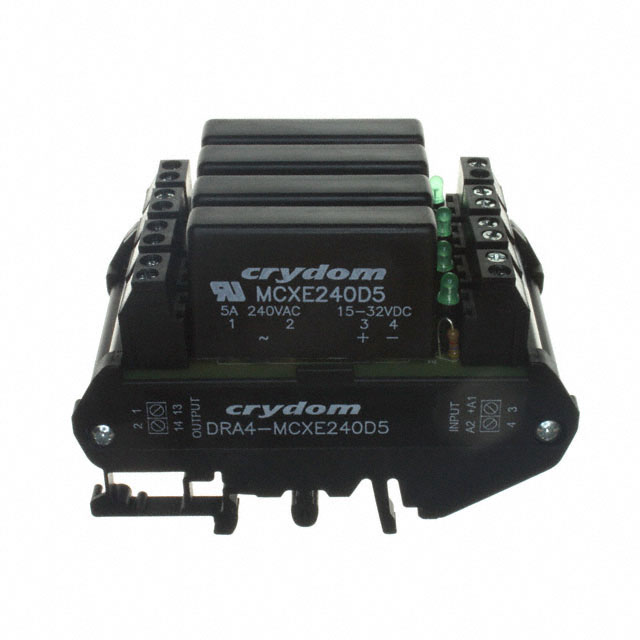

Sensata-Crydom DRA4-MCXE240D5

DRA4-MCXE240D5 Sensata-Crydom
DRA4-MCXE240D5
Sensata-Crydom

Product Information

Maximum Load Voltage:
280 V
Maximum Load Current:
5 A rms
Load Voltage Range:
12 → 280V ac
Dimensions:
89.6 x 53.7 x 62.2mm
Mounting Type:
DIN Rail
Operating Temperature Range:
-40 → +80°C
Series:
DRA4-MCX
Minimum Load Current:
0.06 A rms
Length:
89.6mm
Height:
62.2mm
Off State Leakage Current:
0.1 mA
Depth:
53.7mm
Maximum Turn On Time:
1/2 cycle
Minimum Load Voltage:
12 V ac
Maximum Control Voltage:
32 V
Control Voltage Range:
15 → 32 V dc
Switching Type:
Zero Cross
Maximum Operating Temperature:
+80°C
Minimum Operating Temperature:
-40°C
Minimum Control Voltage:
15 V dc
HTSUS:
8536.49.0055
RoHS Status:
RoHS Compliant
Termination Style:
Screw Terminal
Package / Case:
Module
Voltage - Input:
15 ~ 32VDC
Load Current:
5 A
Output Type:
AC, Zero Cross
edacadModel:
DRA4-MCXE240D5 Models
edacadModelUrl:
/en/models/2197300
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO (1 Form A) x 4
standardLeadTime:
22 Weeks
Mounting Type:
DIN Rail
Series:
DRA
Voltage - Load:
12 V ~ 280 V
Supplier Device Package:
-
Base Product Number:
DRA4-M
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Sensata-Crydom. The manufacturer part number is DRA4-MCXE240D5. While its maximum load voltage is 280 v. It carries 5 a rms maximum load current. Its load voltage range is about 12 → 280v ac . The given dimensions of the product include 89.6 x 53.7 x 62.2mm. The product is available in din rail configuration. The product has -40 → +80°c of operating temperature range. The product dra4-mcx, is a highly preferred choice for users. The product has a minimum 0.06 a rms load current . Its accurate length is 89.6mm. In addition, the height is 62.2mm. Additionally, its off state leakage current is 0.1 ma . The product comes in 53.7mm depth. The product has a maximum 1/2 cycle turn on time . It carries up to 12 v ac minimum load voltage. The product has a maximum 32 v control voltage . Moreover, it has a typical 15 → 32 v dc control voltage range . This product uses zero cross switching mechanism. It has a maximum operating temperature of +80°c. Whereas, the minimum operating temperature of the product is -40°c. Additionally, it has a minimum 15 v dc control voltage . It is assigned with possible HTSUS value of 8536.49.0055. The product is rohs compliant. Moreover, it has screw terminal terminal style. Moreover, the product comes in module. The possible product's input voltage is 15 ~ 32vdc. It has a typical 5 a load current. Furthermore, it has aac, zero cross output. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no (1 form a) x 4 circuit. It has a long 22 weeks standard lead time. The product dra, is a highly preferred choice for users. The given load voltage is 12 v ~ 280 v. Moreover, it corresponds to dra4-m, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
DRA4 MCX Series Din Rail Mount Data Sheet(Technical Reference)
pdf icon
Dra_ Drs series relays and Sockets Brochure(Technical Reference)
pdf icon
Declaration of Conformity 2014/35/EU(Technical Reference)
pdf icon
DRA4 Series, MCX(Datasheets)
pdf icon
DRA, DRS Series Brochure(Datasheets)
pdf icon
CE Declaration of Conformity(Other Related Documents)
