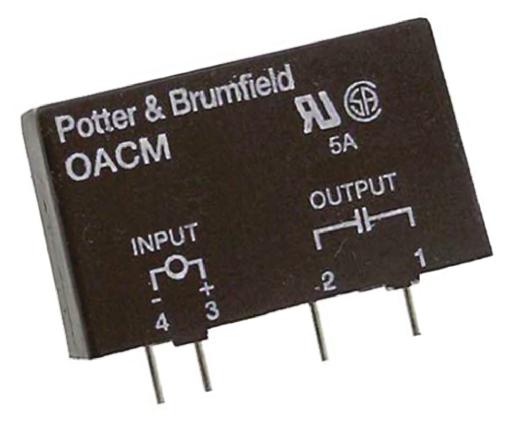

TE Connectivity 5 A rms SPNO Interface Relay Module, AC/DC Triac, 280 V rms Maximum Load

OACM-UH TE Connectivity 5 A rms SPNO Interface Relay Module, AC/DC Triac, 280 V rms Maximum Load
TE Connectivity

Product Information

Dimensions:
43.18 x 10.16 x 25.4mm
Maximum Load Voltage:
280 V rms
Output Device:
Triac
Load Voltage Range:
24 → 280Vrms
Minimum Control Voltage:
3 V dc
Package Style:
Module
Off State Leakage Current:
2 mA rms
Switching Type:
AC/DC
Maximum Operating Temperature:
+80°C
Terminal Type:
PCB Pin
Minimum Load Current:
0.05 A rms
Operating Temperature Range:
-30 → +80°C
Control Voltage Range:
3 → 15 V dc
Contact Configuration:
SPNO
Length:
43.18mm
Maximum Turn On Time:
8.3 ms
Maximum Load Current:
5 A rms
Depth:
10.16mm
Height:
25.4mm
Minimum Operating Temperature:
-30°C
Maximum Control Voltage:
15 V dc
Minimum Load Voltage:
24 V rms
RoHs Compliant
Checking for live stock

This is 5 A rms SPNO Interface Relay Module AC/DC Triac 280 V rms Maximum Load manufactured by TE Connectivity. The manufacturer part number is OACM-UH. The given dimensions of the product include 43.18 x 10.16 x 25.4mm. While its maximum load voltage is 280 v rms. Its output device includes triac. Its load voltage range is about 24 → 280vrms . Additionally, it has a minimum 3 v dc control voltage . Its package is of module style . Additionally, its off state leakage current is 2 ma rms . This product uses ac/dc switching mechanism. It has a maximum operating temperature of +80°c. The terminal is a pcb pin type. The product has a minimum 0.05 a rms load current . The product has -30 → +80°c of operating temperature range. Moreover, it has a typical 3 → 15 v dc control voltage range . The contact is equipped with spno configuration. Its accurate length is 43.18mm. The product has a maximum 8.3 ms turn on time . It carries 5 a rms maximum load current. The product comes in 10.16mm depth. In addition, the height is 25.4mm. Whereas, the minimum operating temperature of the product is -30°c. The product has a maximum 15 v dc control voltage . It carries up to 24 v rms minimum load voltage.

pdf icon
Slim Line Input/Output Modules Data Sheet(Technical Reference)
