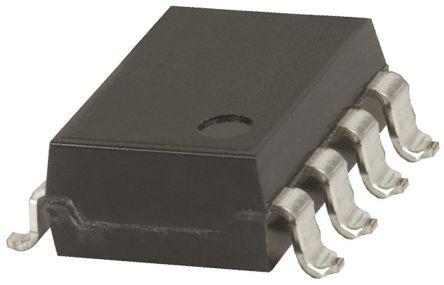

Panasonic 80 mA DPNO Solid State Relay, AC/DC, Surface Mount PhotoMOS, 400 V Maximum Load

AQW284S Panasonic 80 mA DPNO Solid State Relay, AC/DC, Surface Mount PhotoMOS, 400 V Maximum Load
Panasonic

Product Information

Maximum Load Voltage:
400 V
Maximum Load Current:
80 mA
Output Device:
PhotoMOS
Load Voltage Range:
Maximum of 400V
Dimensions:
9.37 x 4.4 x 2.1mm
Mounting Type:
Surface Mount
Operating Temperature Range:
-40 → +85°C
Package Style:
SOP
Control Voltage Range:
1.5 → 5 V
Length:
9.37mm
Height:
2.1mm
Off State Leakage Current:
1 μA
Depth:
4.4mm
Maximum Turn On Time:
3 ms
Maximum Control Voltage:
5 V dc
Switching Type:
AC/DC
Contact Configuration:
DPNO
Terminal Type:
Surface Mount
Minimum Control Voltage:
1.5 V
RoHs Compliant
Checking for live stock

This is 80 mA DPNO Solid State Relay AC/DC Surface Mount PhotoMOS 400 V Maximum Load manufactured by Panasonic. The manufacturer part number is AQW284S. While its maximum load voltage is 400 v. It carries 80 ma maximum load current. Its output device includes photomos. Its load voltage range is about maximum of 400v . The given dimensions of the product include 9.37 x 4.4 x 2.1mm. The product is available in surface mount configuration. The product has -40 → +85°c of operating temperature range. Its package is of sop style . Moreover, it has a typical 1.5 → 5 v control voltage range . Its accurate length is 9.37mm. In addition, the height is 2.1mm. Additionally, its off state leakage current is 1 μa . The product comes in 4.4mm depth. The product has a maximum 3 ms turn on time . The product has a maximum 5 v dc control voltage . This product uses ac/dc switching mechanism. The contact is equipped with dpno configuration. The terminal is a surface mount type. Additionally, it has a minimum 1.5 v control voltage .

pdf icon
PhotoMOS Relays Data Sheet(Technical Reference)
