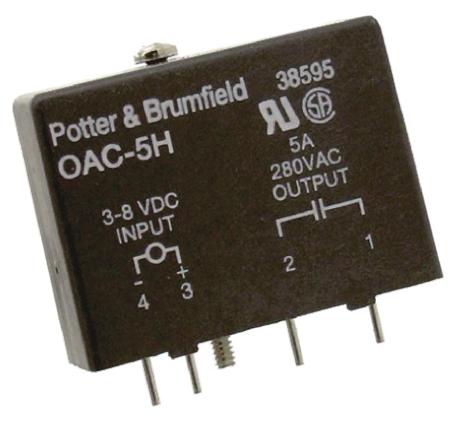

TE Connectivity 5 A SPNO Interface Relay Module, AC/DC, PCB Mount Triac, 280 V rms Maximum Load

OAC-5H TE Connectivity 5 A SPNO Interface Relay Module, AC/DC, PCB Mount Triac, 280 V rms Maximum Load
TE Connectivity

Product Information

Dimensions:
43.18 x 15.2 x 31.8mm
Maximum Load Voltage:
280 V rms
Output Device:
Triac
Load Voltage Range:
24 → 280Vrms
Minimum Control Voltage:
3 V dc
Package Style:
Module
Off State Leakage Current:
2 mA rms
Switching Type:
AC/DC
Maximum Operating Temperature:
+80°C
Terminal Type:
PCB Pin
Control Voltage Range:
3 → 8 V dc
Operating Temperature Range:
-30 → +80°C
Minimum Load Current:
0.05 A
Contact Configuration:
SPNO
Length:
43.18mm
Maximum Turn On Time:
8.3 ms
Maximum Load Current:
5 A
Mounting Type:
PCB Mount
Depth:
15.2mm
Height:
31.8mm
Minimum Operating Temperature:
-30°C
Maximum Control Voltage:
8 V dc
Minimum Load Voltage:
24 V rms
RoHs Compliant
Checking for live stock

This is 5 A SPNO Interface Relay Module AC/DC PCB Mount Triac 280 V rms Maximum Load manufactured by TE Connectivity. The manufacturer part number is OAC-5H. The given dimensions of the product include 43.18 x 15.2 x 31.8mm. While its maximum load voltage is 280 v rms. Its output device includes triac. Its load voltage range is about 24 → 280vrms . Additionally, it has a minimum 3 v dc control voltage . Its package is of module style . Additionally, its off state leakage current is 2 ma rms . This product uses ac/dc switching mechanism. It has a maximum operating temperature of +80°c. The terminal is a pcb pin type. Moreover, it has a typical 3 → 8 v dc control voltage range . The product has -30 → +80°c of operating temperature range. The product has a minimum 0.05 a load current . The contact is equipped with spno configuration. Its accurate length is 43.18mm. The product has a maximum 8.3 ms turn on time . It carries 5 a maximum load current. The product is available in pcb mount configuration. The product comes in 15.2mm depth. In addition, the height is 31.8mm. Whereas, the minimum operating temperature of the product is -30°c. The product has a maximum 8 v dc control voltage . It carries up to 24 v rms minimum load voltage.
