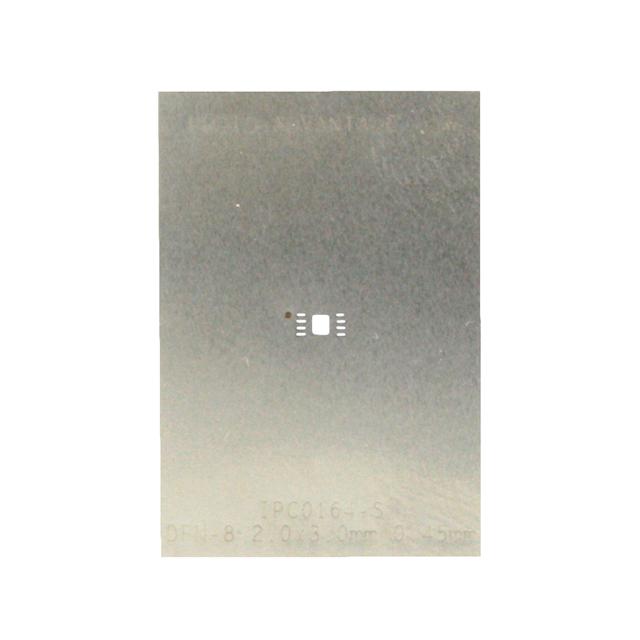

Chip Quik Inc. IPC0164-S

IPC0164-S Chip Quik Inc.
Chip Quik Inc.

Product Information

Material:
Stainless Steel
HTSUS:
8515.19.0000
RoHS Status:
ROHS3 Compliant
Thickness:
0.0040" (0.102mm)
Type:
DFN
Number of Positions:
8
Outer Dimension:
1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:
0.118" L x 0.079" W (3.00mm x 2.00mm)
REACH Status:
REACH Unaffected
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
2 Weeks
Series:
Proto-Advantage IPC
Thermal Center Pad:
0.065" L x 0.053" W (1.65mm x 1.35mm)
Pitch:
0.018" (0.45mm)
ECCN:
EAR99
Checking for live stock

This is manufactured by Chip Quik Inc.. The manufacturer part number is IPC0164-S. The product is made from highly stable and reliable stainless steel. It is assigned with possible HTSUS value of 8515.19.0000. The product is rohs3 compliant. It is 0.0040" (0.102mm) thick. It comes in dfn configuration. The product carries possible position value of 8. Outer dimensions are 1.300" l x 0.900" w (33.02mm x 22.86mm). Inner dimensions include - [Inner Dimensions]. In addition, it is reach unaffected. It is shipped in bulk package . Its typical moisture sensitivity level is not applicable. It has a long 2 weeks standard lead time. The product proto-advantage ipc, is a highly preferred choice for users. The thermal center pad has 0.065" l x 0.053" w (1.65mm x 1.35mm). Moreover, the product is 0.018" (0.45mm). The product is designated with the ear99 code number.
