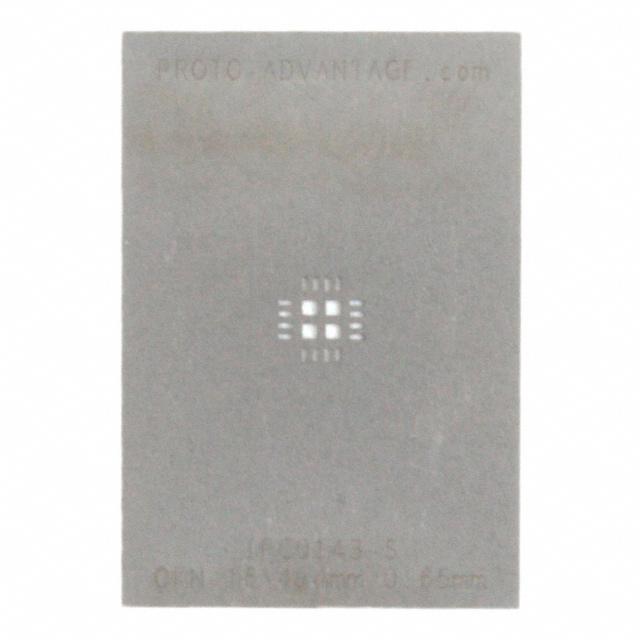

Chip Quik Inc. IPC0143-S

IPC0143-S Chip Quik Inc.
Chip Quik Inc.

Product Information

Material:
Stainless Steel
HTSUS:
7218.10.0000
RoHS Status:
ROHS3 Compliant
Thickness:
0.0040" (0.102mm)
Type:
QFN/LFCSP
Number of Positions:
16
Outer Dimension:
1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:
0.157" L x 0.157" W (4.00mm x 4.00mm)
REACH Status:
REACH Unaffected
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
2 Weeks
Series:
Proto-Advantage IPC
Thermal Center Pad:
0.106" L x 0.106" W (2.70mm x 2.70mm)
Pitch:
0.026" (0.65mm)
ECCN:
EAR99
Checking for live stock

This is manufactured by Chip Quik Inc.. The manufacturer part number is IPC0143-S. The product is made from highly stable and reliable stainless steel. It is assigned with possible HTSUS value of 7218.10.0000. The product is rohs3 compliant. It is 0.0040" (0.102mm) thick. It comes in qfn/lfcsp configuration. The product carries possible position value of 16. Outer dimensions are 1.300" l x 0.900" w (33.02mm x 22.86mm). Inner dimensions include - [Inner Dimensions]. In addition, it is reach unaffected. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 2 weeks standard lead time. The product proto-advantage ipc, is a highly preferred choice for users. The thermal center pad has 0.106" l x 0.106" w (2.70mm x 2.70mm). Moreover, the product is 0.026" (0.65mm). The product is designated with the ear99 code number.

pdf icon
IPC0143-S(Datasheets)
pdf icon
Circuit Assembly Instr(Datasheets)
pdf icon
Stencil Selection Guilde(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search IPC0143-S on website for other similar products.
We accept all major payment methods for all products including ET13759820. Please check your shopping cart at the time of order.
You can order Chip Quik Inc. brand products with IPC0143-S directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Solder Stencils, Templates category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Chip Quik Inc. IPC0143-S. You can also check on our website or by contacting our customer support team for further order details on Chip Quik Inc. IPC0143-S.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13759820 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Chip Quik Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET13759820.
Yes. We ship IPC0143-S Internationally to many countries around the world.
