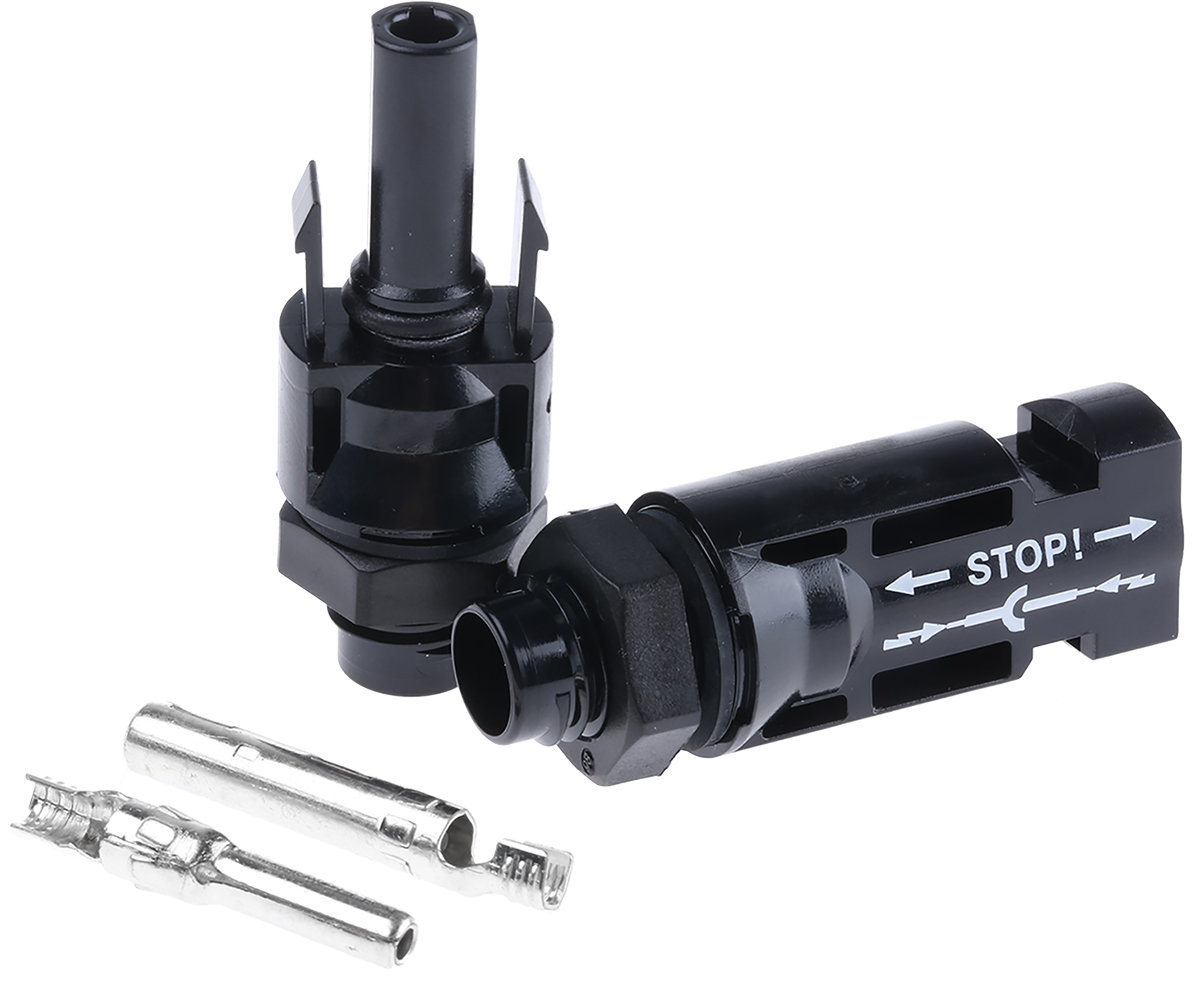

Multi Contact Female, Male, Panel Mount MC4 Connector, Cable CSA, 1.5 → 2.5mm², Rated At 17 A, 22.5 A, 1 kV dc

Enrgtech Part No: ET19203448
|
Manufacturer Part No:
32.0076P0001+32.0077P0001
|
Manufacturer: Staubli

32-0076P0001-32-0077P0001 Multi Contact Female, Male, Panel Mount MC4 Connector, Cable CSA, 1.5 → 2.5mm², Rated At 17 A, 22.5 A, 1 kV dc

Product Information

The 32.0076P0001+32.0077P0001 Staubli is a panel-mount MC4 connector that guarantees reliable connectivity solutions in various photovoltaic installation applications. The connector can handle high-current capacity, is easy to install, durable, waterproof, UV-resistant, and compatible with most solar panels and equipment designed for photovoltaic systems.

Better World Product:

Yes

Current Rating:

17 A, 22.5A

Mounting Type:

Panel Mount

Voltage Rating:

1 kV

Better World Claim:

Renewable energy solution

Gender:

Female, Male

Thread Size:

M12

Plug/Socket:

Socket

Minimum Operating Temperature:

-40°C

Termination Method:

Crimp

Cable CSA:

1.5 → 2.5mm²

Maximum Operating Temperature:

+90°C

Checking for live stock

The Staubli female, male MC4 connector is a highly reliable solar connector designed with precision to ensure a secure and reliable connection in photovoltaic systems. MC4 (multi-contact 4) connectors are solar connectors designed for connecting solar panels in solar arrays or connecting other electrical components. The 32.0076P0001+32.0077P0001 is a panel-mount MC4 connector, providing robust compatibility with multiple cables. The connector ensures tool-free assembly and is easy to install, with a high current carrying capacity. The Staubli MC4 connector integrates MC-Multilam technology, providing low contact resistance in solar power systems. Additionally, the IP-67-rated connector ensures tight and secure connections in solar panel installations or connecting solar panels to inverters or junction boxes.

Key Features and Benefits of Staubli Female, Male Panel-Mount MC4 Connector:

The Staubli panel-mount MC4 connector offers various key features and benefits, including:

Robust Compatibility: The connector is designed to be compatible with standard MC4 connectors, ensuring it can be used with most solar panels and inverters on the market.
High-Quality Materials: The connector is made from high-quality, UV-resistant materials, ensuring durability and long-term reliability.
Waterproof and Dustproof: These connectors are IP67 protected, making them waterproof and dustproof.
Easy Installation: Staubli MC4 connectors are easy to install and typically feature a snap-in locking system that simplifies the connection process and reduces the installation time.
Low Power Loss: The 32.0076P0001+32.0077P0001 is engineered to minimise power loss, ensuring the electrical connections between solar panels are efficient and reliable.
High Current and Voltage Rating: A bespoke connector can handle high current and voltage levels and ensures it can safely and efficiently transmit the electricity generated by the solar panels.
Low Contact Resistance: The MC4 connector has low contact resistance, maintaining the efficiency of the electrical connection between solar panels.

Typical Applications of 32.0076P0001+32.0077P0001 Staubli Female, Male Panel-Mount MC4 Connector:

The MC4 connector from Staubli finds versatile applications across multiple photovoltaic solar panel installations. Some typical applications of MC4 connectors include:

Solar Panel Interconnection
Inverter Connections
Junction Boxes
Solar Array Wiring
Extension Cables
Maintenance and Repairs
Off-Grid Systems
Solar Water Heaters
DIY Solar Projects.

MC4 Female and Male Panel Connectors(Technical Reference)
